[SwiftUI fundamental Tutorial] Stack 강의/etc

위 글은 유튜브 정대리님의 SwiftUI fundamental Tutorial 강좌를 보고 작성한 정리글로

자세한 내용은 유튜브를 통해 확인하시길 권장합니다.

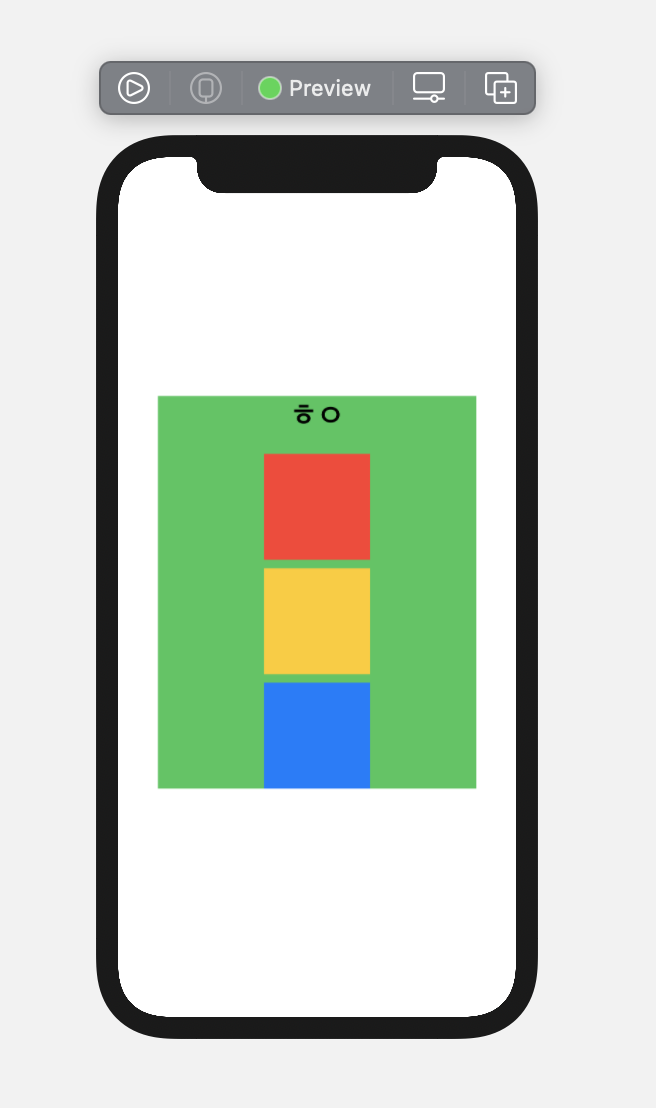

VStack

import SwiftUI

struct ContentView:View {
    var body:some View{
        VStack{

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.heavy)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)

            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)

        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

frame()의 default 값: 화면 전체를 다 채움

쉽게 생각하면 frame=크기: .frame(width: 300)











import SwiftUI

struct ContentView: View{
	var body: some View{

	VStack(alignment: .trailing, spacing: 50){

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.heavy)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)


            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)


        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

spacing: 스택 안의 요소들에게 간격을 부여할 수 있음

alignment: (글자가 채워진 만큼) 정렬

VStack(alignment: .trailing, spacing: 50){



}















VStack이나 HStack 안에서 완전히 정렬하고 싶을때 여러가지 방법이 있음





1. Divider() 사용

import SwiftUI

struct ContentView: View{
	var body: some View{

	VStack(alignment: .trailing, spacing: 50){

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.heavy)

            Divider()

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)


            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)


        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

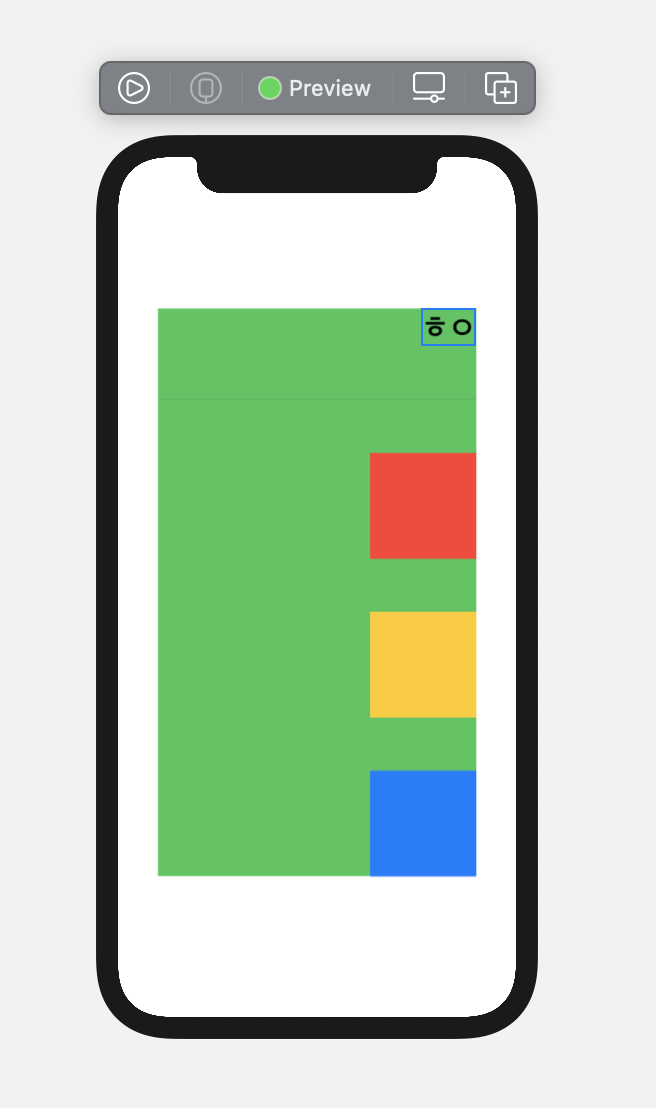

Divider() 사용시 주의할 점: 실선의 테두리가 보임



실선 테두리를 없애기 위해서는 Divider()의 .opacity(0) 부여

import SwiftUI

struct ContentView: View{
	var body: some View{

	VStack(alignment: .trailing, spacing: 50){

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.heavy)

            Divider()
            	.opacity(0)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)


            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)


        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

실선 없어짐











2. empty View 넣기

import SwiftUI

struct ContentView: View{
	var body: some View{

	VStack(alignment: .trailing, spacing: 50){

			Rectangle()
            	.frame(height: 1)

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.heavy)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)


            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)


        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

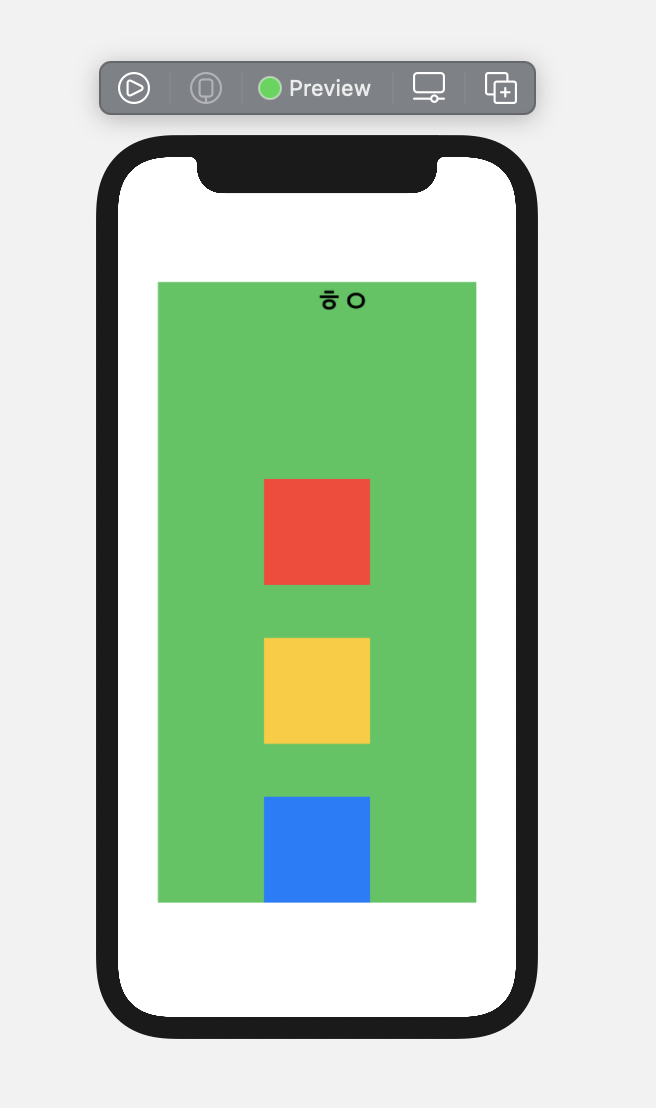

3. 요소들마다 개별적으로 padding 부여

코드 생략



등등 여러가지 방법이 존재함













import SwiftUI

struct ContentView: View{
	var body: some View{

	VStack(alignment: .trailing, spacing: 50){

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.heavy)

            Divider()
            	.opacity(0)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)


            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)


            Spacer()

        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

Spacer(): 가중치 부여











import SwiftUI

struct ContentView: View{
	var body: some View{

	VStack(alignment: .trailing, spacing: 50){

           Spacer()

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.heavy)

            Divider()
            	.opacity(0)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)


            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)


            Spacer()

        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

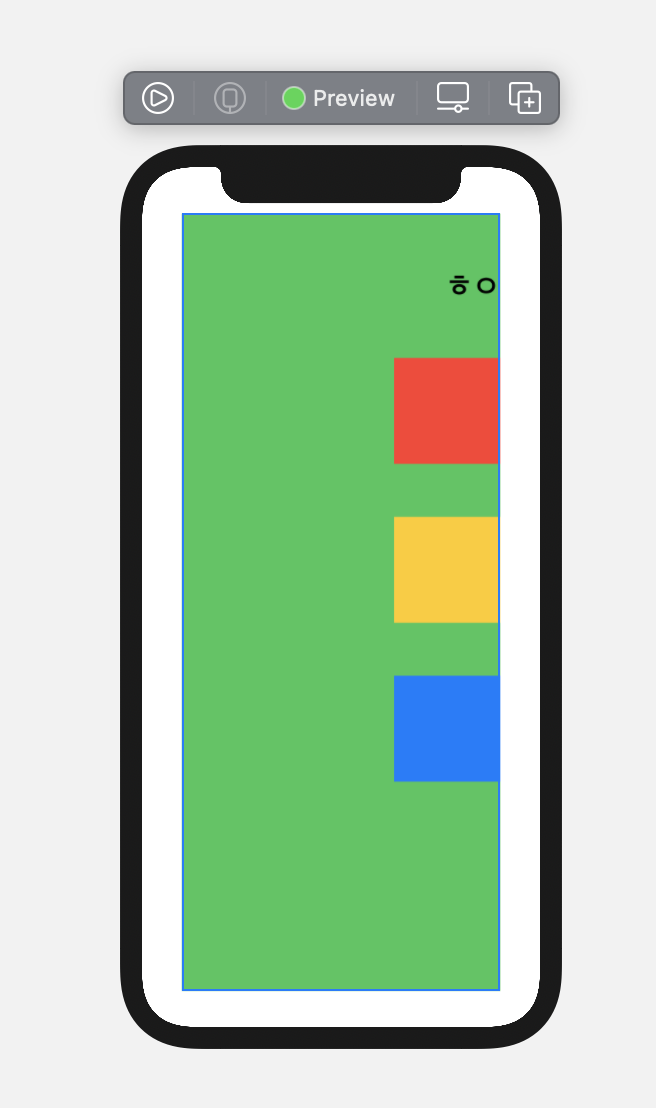

Spacer()를 위아래 둘 다 두면 위 아래 둘 다 가중치가 부여되어 요소들이 중간으로 배치 (비율에 따라)













import SwiftUI
	struct ContentView: View{
    	var body: some View

    	VStack(alignment: .trailing, spacing: 0){

            Divider().opacity(0) //frame 테두리 없애기

            Text("ㅎㅇ")
                .font(.system(size: 30))
                .fontWeight(.bold)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width:100, height:100)
                .foregroundColor(Color.yellow)

            Spacer()
                .frame(height:50)

            Rectangle()
                    .frame(width:100, height:100)
                    .foregroundColor(Color.blue)

        }

        .frame(width: 300)
        .background(Color.green)

        }
    }

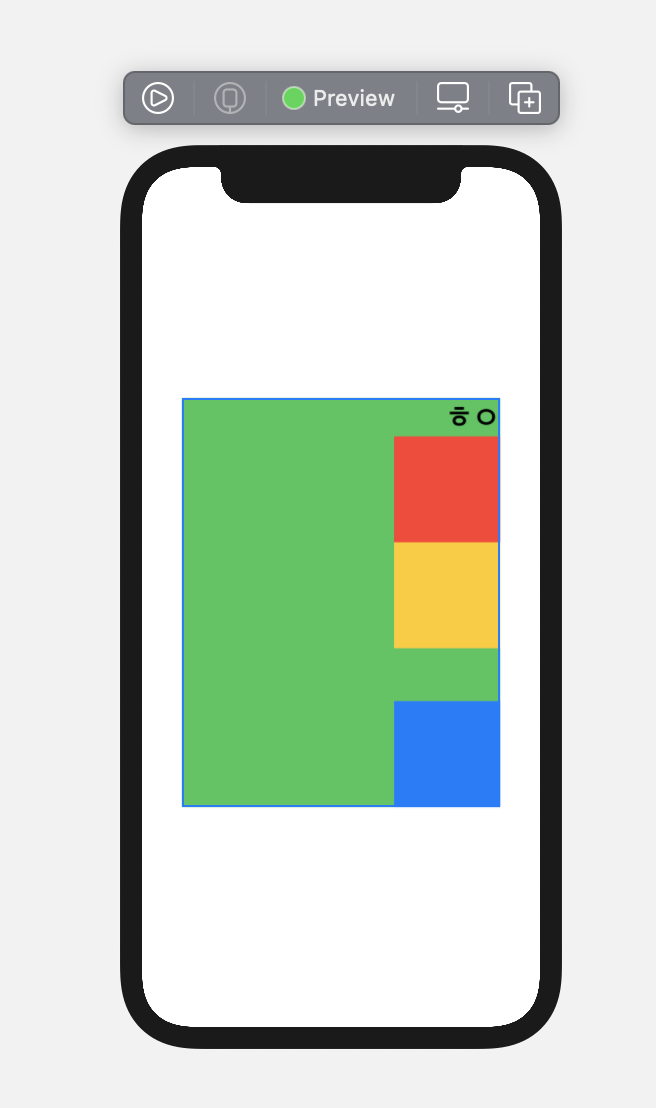

Spacer() 속성 값 부여 가능











HStack

(앞의 VStack과 별 차이는 없음)

import SwiftUI

struct MyHstack : View{
    var body : some View{

        HStack(alignment: .center){

        	Divider()

            Rectangle()
            	.frame(width: 100, height:100)
                .foregroundColor(.red)

            Rectangle()
                .frame(width: 100, height:100)
                .foregroundColor(.yellow)

            Rectangle()
                .frame(width: 100, height:100)
                .foregroundColor(.blue)
        }
        .background(Color.green)
    }
}

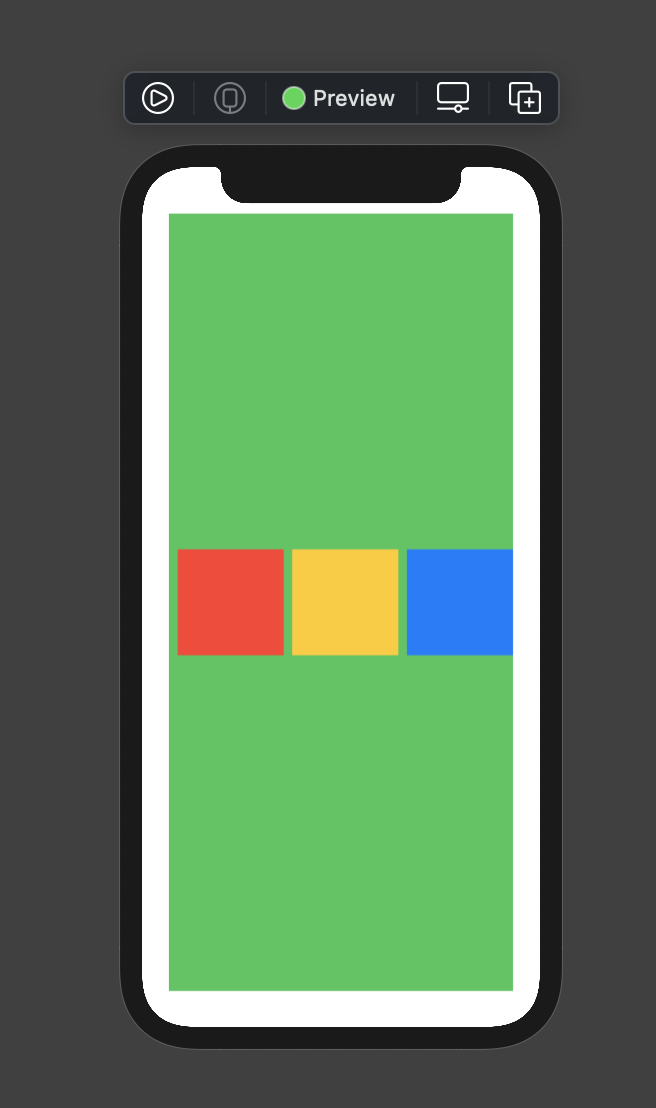

Divider()로 배경이 늘어남







import SwiftUI

struct MyHstack : View{
    var body : some View{

        HStack(alignment: .center){

            Rectangle()
                .frame(width: 100)
                .foregroundColor(.white)

            Rectangle()
                .frame(width: 100, height:100)
                .foregroundColor(.red)

            Rectangle()
                .frame(width: 100, height:100)
                .foregroundColor(.yellow)

            Rectangle()
                .frame(width: 100, height:100)
                .foregroundColor(.blue)
        }
        .padding()
        .background(Color.green)
    }
}

하얀색 사각혐 fram()에 height 값을 지정하지 않아서 배경 크기 만큼 늘어나는 것을 확인 할 수 있음







import SwiftUI

struct MyHstack : View{
    var body : some View{

        HStack(alignment: .center){

            Image(systemName: "flame.fill")
                .foregroundColor(.red)
                .font(.system(size:70))

            Rectangle()
                .frame(width: 100, height:100)
                .foregroundColor(.yellow)

            Rectangle()
                .frame(width: 100, height:100)
                .foregroundColor(.blue)
        }
        .padding()
        .background(Color.green)
    }
}

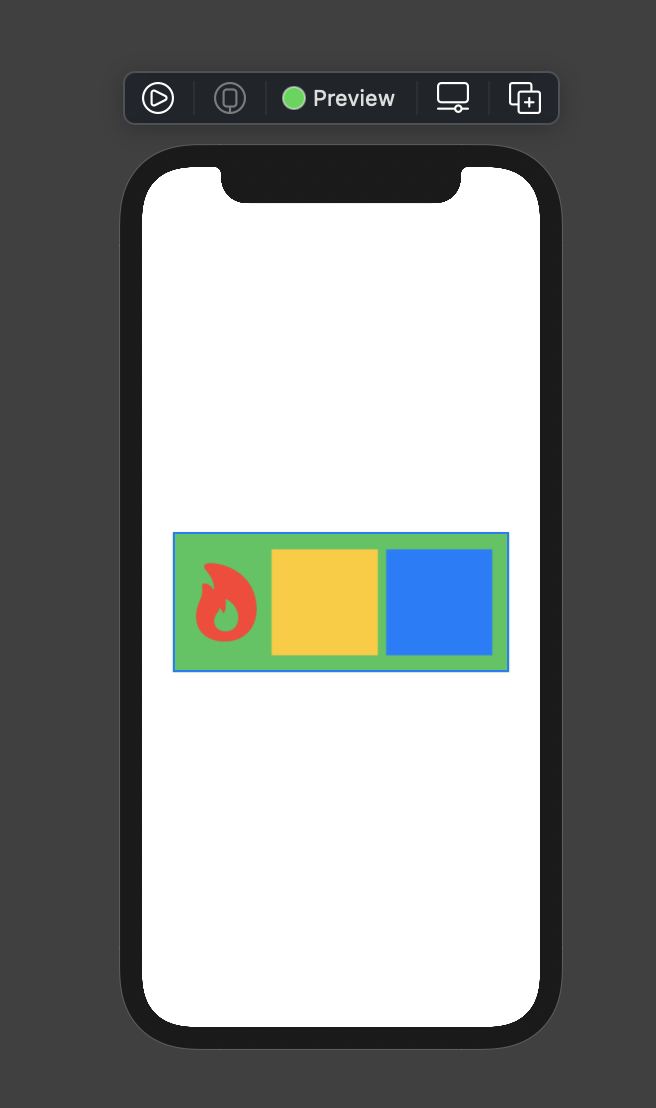

사각형 대신 이미지를 넣어서 활용할 수 있음













ZStack

Z축으로 깊이(중첩)를 설정할 수 있음

import SwiftUI

struct MyZstack : View{
    var body : some View{

        ZStack{

            Rectangle()
                .frame(width: 100, height: 100)
                .foregroundColor(Color.red)

           Rectangle()
                .frame(width: 200, height: 200)
                .foregroundColor(Color.yellow)
        }
    }
}

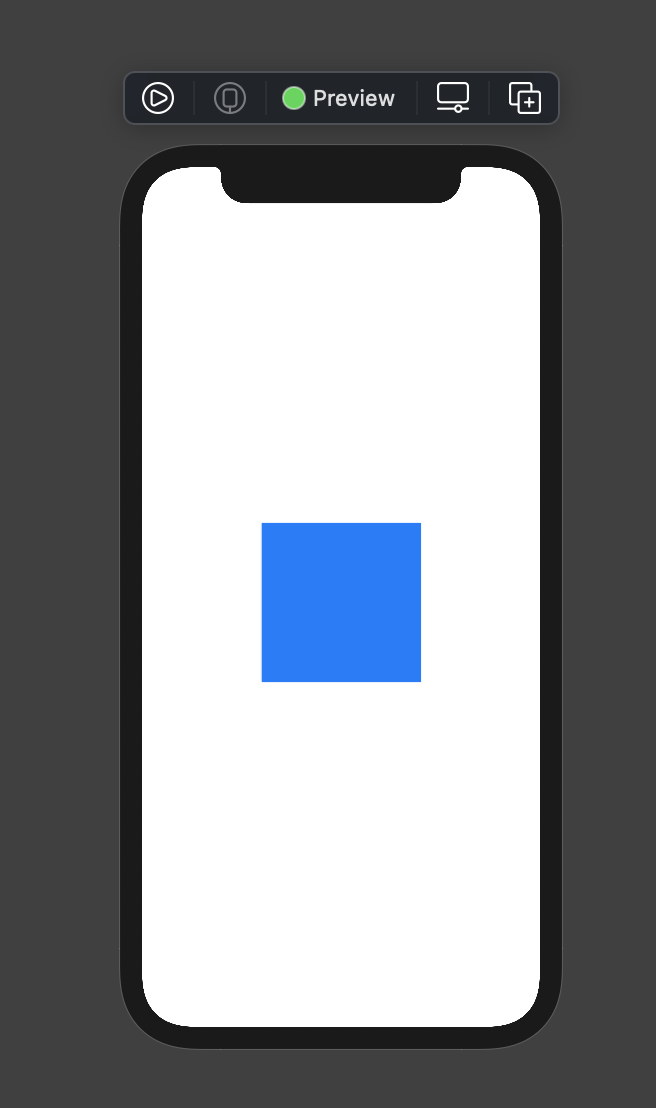

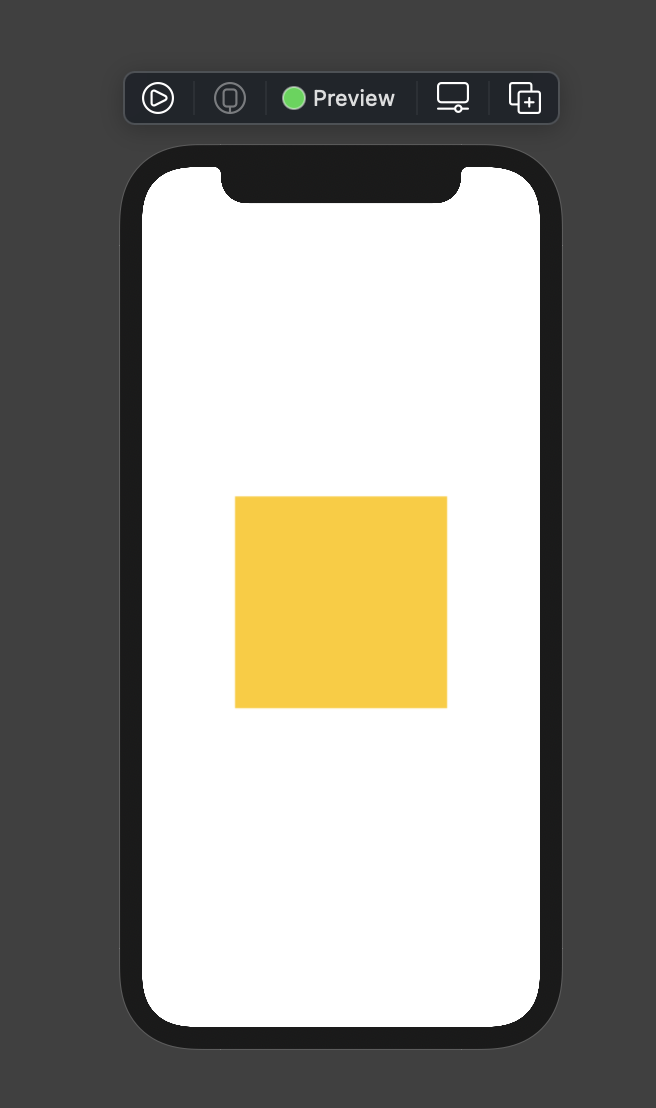

빨간색 사각형을 노란색 사각형이 덮은 상태

코드 아래쪽으로 갈 수록 덮어 씌운다고 생각하면 됨





import SwiftUI

struct MyZstack : View{
    var body : some View{

        ZStack{

            Rectangle()
                .frame(width: 100, height: 100)
                .foregroundColor(Color.red)

           Rectangle()
                .frame(width: 50, height: 50)
                .foregroundColor(Color.yellow)
        }
    }
}

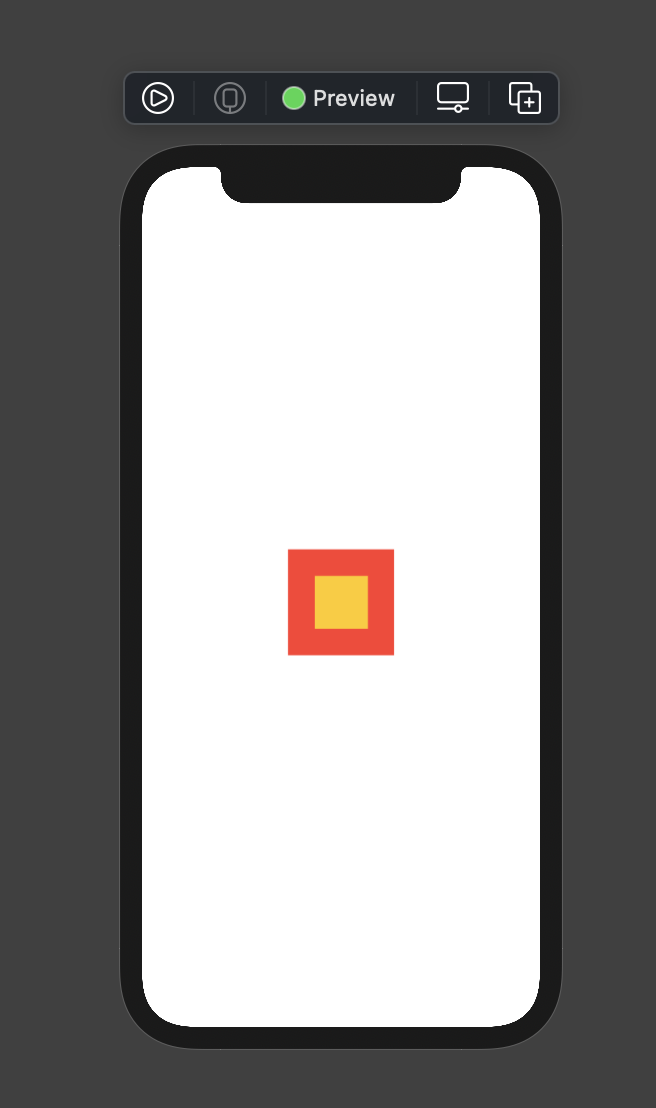

import SwiftUI

struct MyZstack : View{
    var body : some View{

        ZStack{

            Rectangle()
                .frame(width: 50, height: 50)
                .foregroundColor(Color.yellow)

            Rectangle()
                .frame(width: 100, height: 100)
                .foregroundColor(Color.red)

            Rectangle()
                .frame(width: 150, height:150)
                .foregroundColor(Color.blue)
        }
    }
}

깊이 순서 설정 전



import SwiftUI

struct MyZstack : View{
    var body : some View{

        ZStack{

            Rectangle()
                .frame(width: 50, height: 50)
                .foregroundColor(Color.yellow)
                .zIndex(2)

            Rectangle()
                .frame(width: 100, height: 100)
                .foregroundColor(Color.red)
                .zIndex(1)

            Rectangle()
                .frame(width: 150, height:150)
                .foregroundColor(Color.blue)
                .zIndex(0)
        }
    }
}

zIndex(): ZStack의 깊이 순서 설정, 계층이라고 생각

zIndex(0)= zIndex를 사용하기 전이랑 같음

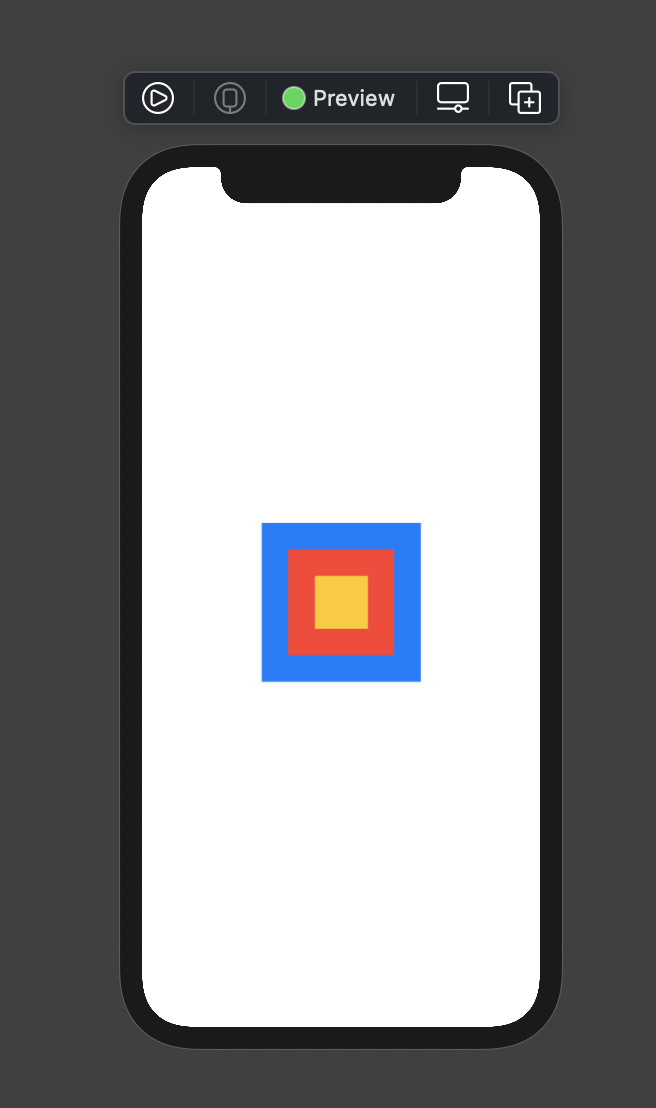

깊이 설정 후



기타 설정

import SwiftUI

struct MyZstack : View{
    var body : some View{

        ZStack{

            Rectangle()
                .frame(width: 50, height: 50)
                .foregroundColor(Color.yellow)
                .zIndex(2)
                .padding(.bottom, 100)


            Rectangle()
                .frame(width: 100, height: 100)
                .foregroundColor(Color.red)
                .zIndex(1)

            Rectangle()
                .frame(width: 150, height:150)
                .foregroundColor(Color.blue)
                .zIndex(0)
        }
    }
}

padding() 설정

import SwiftUI

struct MyZstack : View{
    var body : some View{

        ZStack{

            Rectangle()
                .frame(width: 50, height: 50)
                .foregroundColor(Color.yellow)
                .zIndex(2)
//                .padding(.bottom, 100)
                .offset(y: -100)


            Rectangle()
                .frame(width: 100, height: 100)
                .foregroundColor(Color.red)
                .zIndex(1)

            Rectangle()
                .frame(width: 150, height:150)
                .foregroundColor(Color.blue)
                .zIndex(0)
        }
    }
}

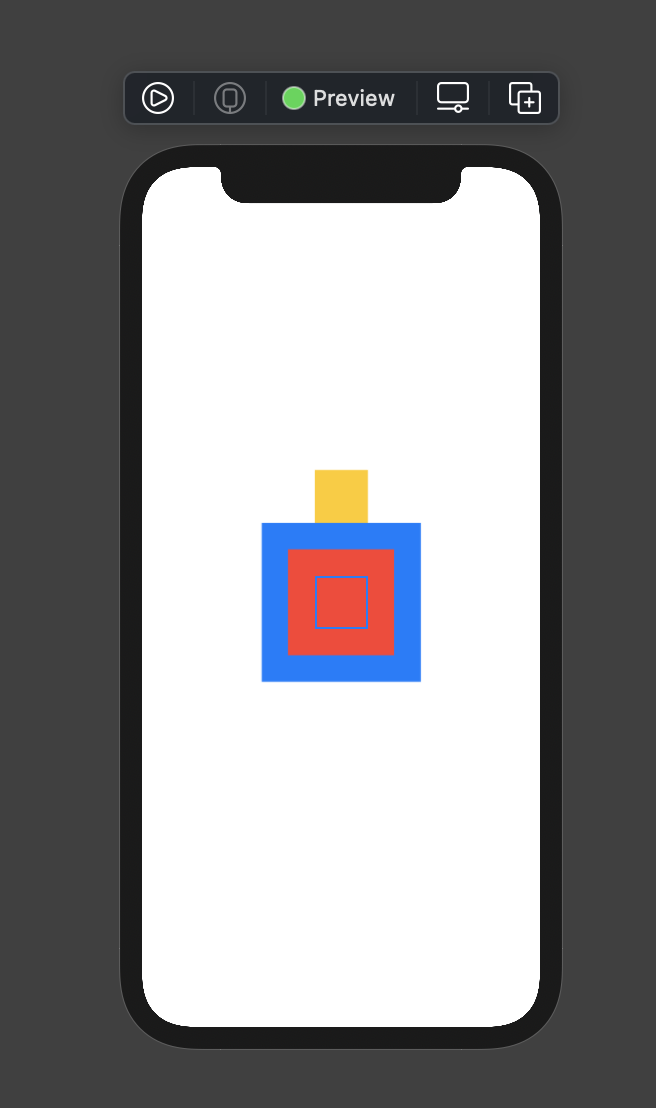

offset(y: -100) 설정
