위 글은 유튜브 정대리님의 SwiftUI fundamental Tutorial 강좌를 보고 작성한 정리글로
자세한 내용은 유튜브를 통해 확인하시길 권장합니다.

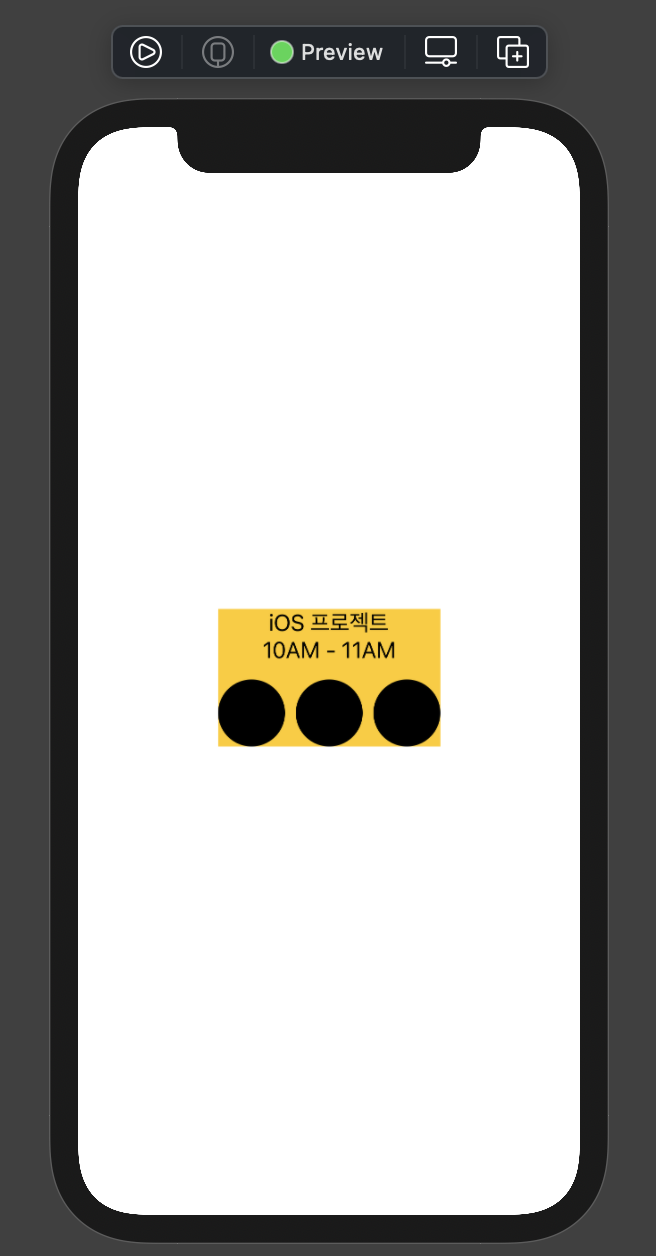

요소가 3개로 이루어진 VStack 카드
요소 3개 중 1개는 HStack
import SwiftUI
struct MyCard: View{
var body: some View{
VStack{
Text("iOS 프로젝트")
Text("10AM - 11AM")
HStack{
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
}
}
.background(Color.yellow)
}
}

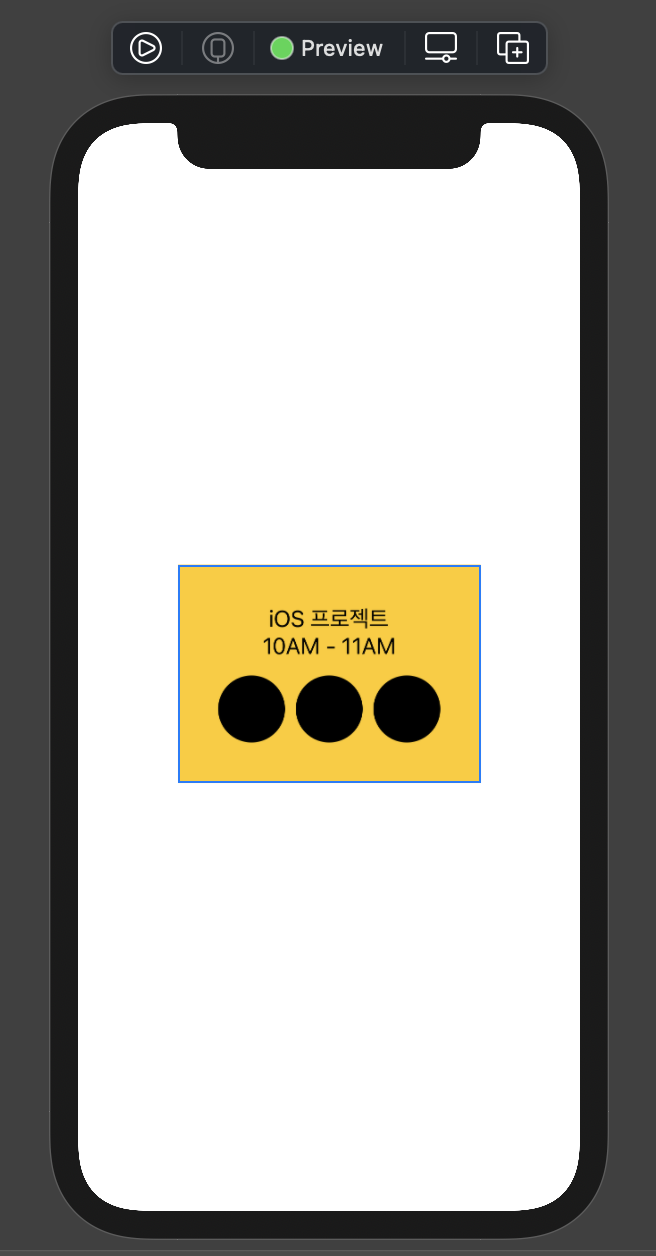

import SwiftUI
struct MyCard: View{
var body: some View{
VStack{
Text("iOS 프로젝트")
Text("10AM - 11AM")
HStack{
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
}
}
.padding(30)
.background(Color.yellow)
}
}
padding()을 주고 background(Color.) 설정
이유: SwiftUI는 위에서부터 아래로 뷰를 그려나가는 형식
VStack 요소들 좌측 정렬하기

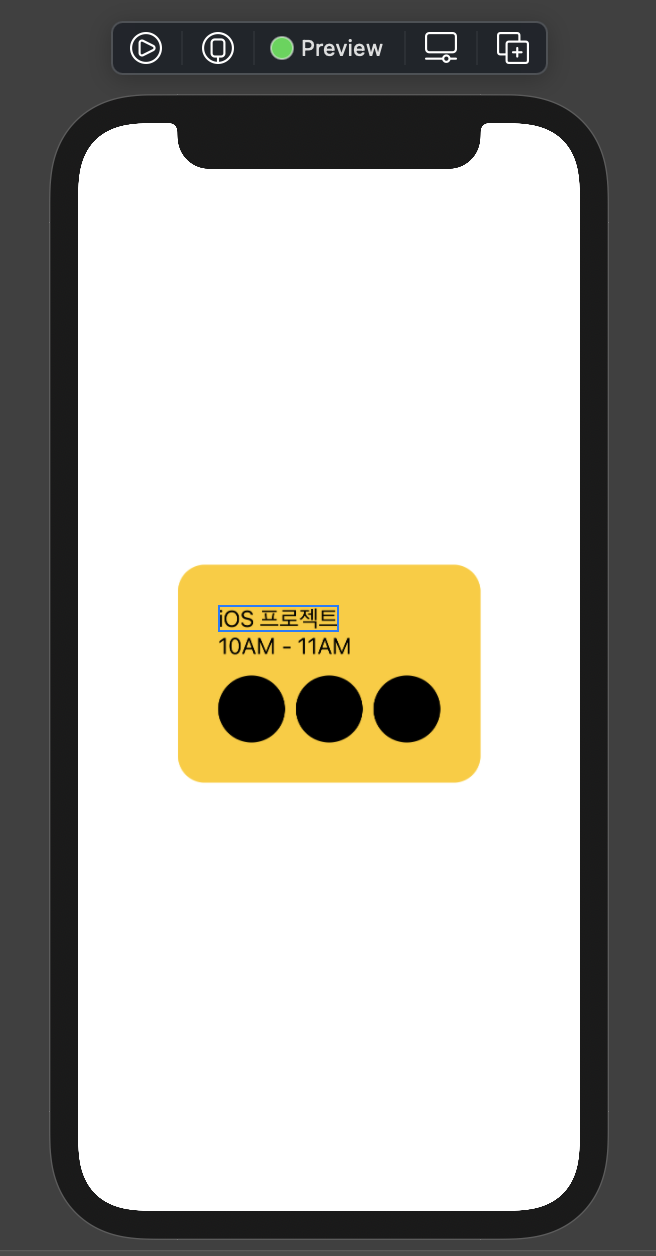

import SwiftUI
struct MyCard: View{
var body: some View{
VStack(alignment: .leading){
Text("iOS 프로젝트")
Text("10AM - 11AM")
HStack{
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}
VStack(alignment: .leading)으로 글자들은 좌측 정렬이 되지만 Circle()들은 좌측 정렬이 안됨
카드 크기를 넓혀서 요소들을 좌측 정렬하고 싶음
지난 Stack 강의에서 배운
1. Divider() 사용하기
2. empty View 사용하기(✔️)를 이용하여 좌측 정렬하기

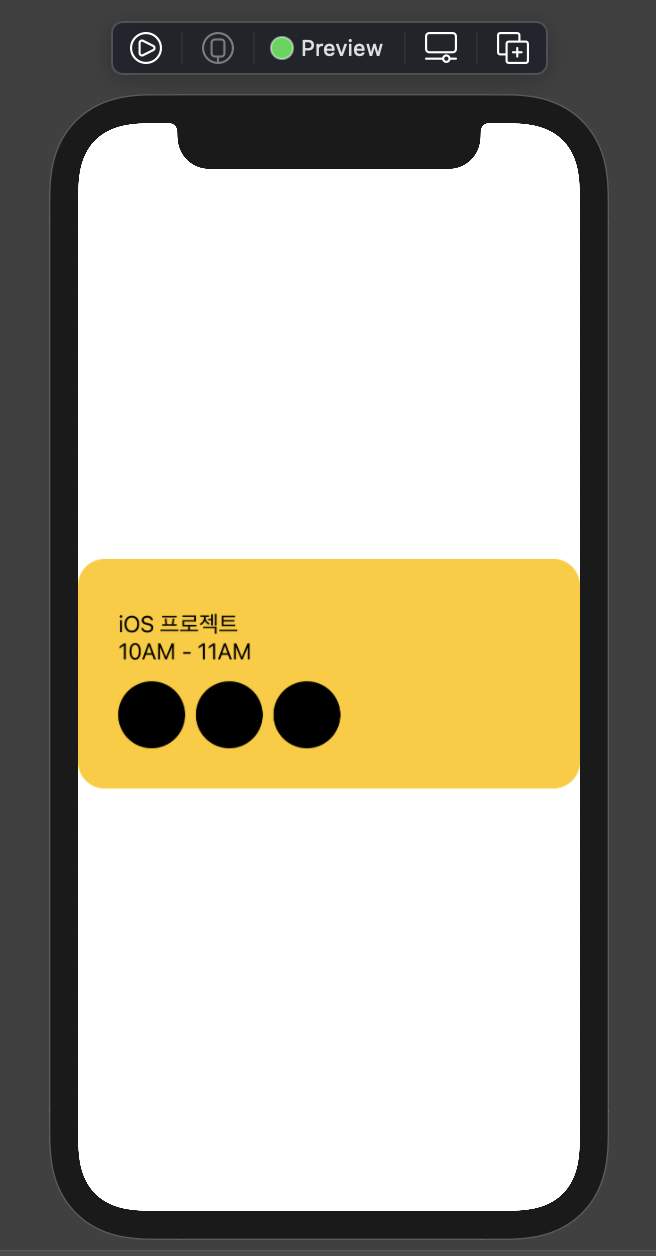

import SwiftUI
struct MyCard: View{
var body: some View{
VStack(alignment: .leading){
Rectangle().frame(height: 0)
Text("iOS 프로젝트")
Text("10AM - 11AM")
HStack{
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}
padding() 또는 Spacer()를 사용하여 글자 간격 띄우기, 텍스트 설정하기
import SwiftUI
struct MyCard: View{
var body: some View{
VStack(alignment: .leading){
Rectangle().frame(height: 0)
Text("iOS 프로젝트")
.font(.system(size:23))
.fontWeight(.bold)
.padding(.bottom,5)
Text("10AM - 11AM")
.foregroundColor(.secondary)
//secondary = 회색
HStack{
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
Circle().frame(width: 50, height: 50)
Spacer()
Text("확인")
.fontWeight(.bold)
.foregroundColor(.white)
.padding()
.frame(width: 80)
.background(Color.blue)
.cornerRadius(20)
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}
랜덤 유저 이미지 사이트에서 이미지 저장
Circle() 대신 이미지 사용
import SwiftUI
struct MyCard : View {
var body: some View{
VStack(alignment: .leading){
Rectangle().frame(height:0)
Text("iOS 프로젝트")
.font(.system(size:23))
.fontWeight(.bold)
.padding(.bottom,5)
Text("10 AM - 11 AM")
.foregroundColor(.secondary)
Spacer().frame(height:20)
HStack{
Image("1")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
.overlay(
Circle()
.stroke(lineWidth: 1)
.foregroundColor(Color.red)
)
Image("2")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Image("3")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Spacer()
Text("확인")
.fontWeight(.bold)
.foregroundColor(.white)
.padding()
.frame(width: 80)
.background(Color.blue)
.cornerRadius(20)
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}

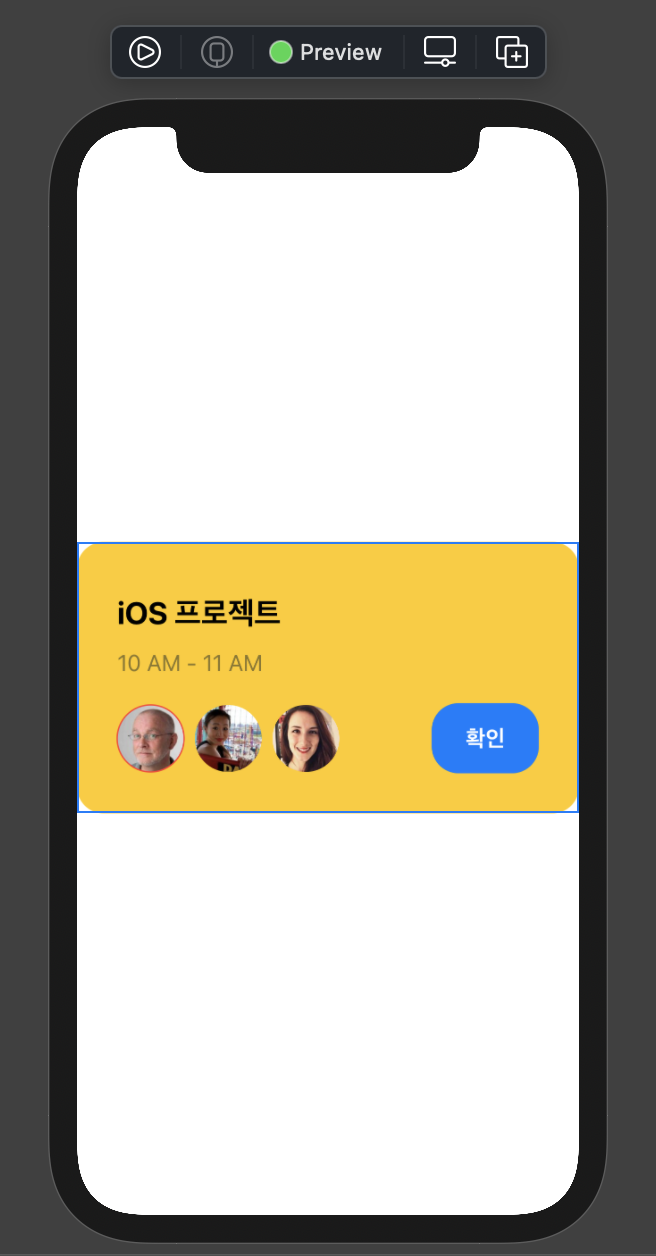

Rectangle()을 사용하면 옵션이 default로 spacing이 추가된 상태
VStack 옵션에 spacing: 0 처리
import SwiftUI
struct MyCard : View {
var body: some View{
VStack(alignment: .leading, spacing: 0){
Rectangle().frame(height:0)
Text("iOS 프로젝트")
.font(.system(size:23))
.fontWeight(.bold)
.padding(.bottom,5)
Text("10 AM - 11 AM")
.foregroundColor(.secondary)
Spacer().frame(height:20)
HStack{
Image("1")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
.overlay(
Circle()
.stroke(lineWidth: 1)
.foregroundColor(Color.red)
)
Image("2")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Image("3")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Spacer()
Text("확인")
.fontWeight(.bold)
.foregroundColor(.white)
.padding()
.frame(width: 80)
.background(Color.blue)
.cornerRadius(20)
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}

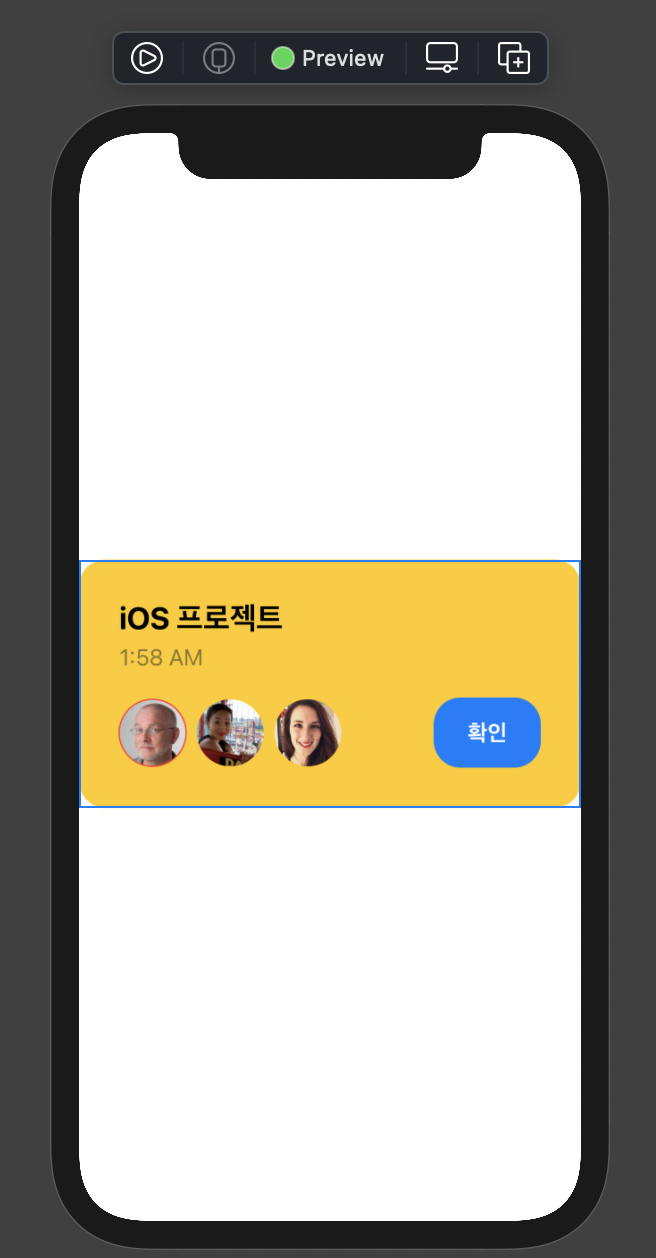

📌 번외: 시간 응용하기
임의로 넣은 고정 시간이 아닌 현재 시간(실시간) 받아오기
import SwiftUI
struct MyCard : View {
@State
var shouldShowAlert : Bool = false
let date = Date()
var body: some View{
VStack(alignment: .leading, spacing: 0){
Rectangle().frame(height:0)
Text("iOS 프로젝트")
.font(.system(size:23))
.fontWeight(.bold)
.padding(.bottom,5)
Text(date, style: .time)
.foregroundColor(.secondary)
Spacer().frame(height:20)
HStack{
Image("1")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
.overlay(
Circle()
.stroke(lineWidth: 1)
.foregroundColor(Color.red)
)
Image("2")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Image("3")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Spacer()
Text("확인")
.fontWeight(.bold)
.foregroundColor(.white)
.padding()
.frame(width: 80)
.background(Color.blue)
.cornerRadius(20)
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}

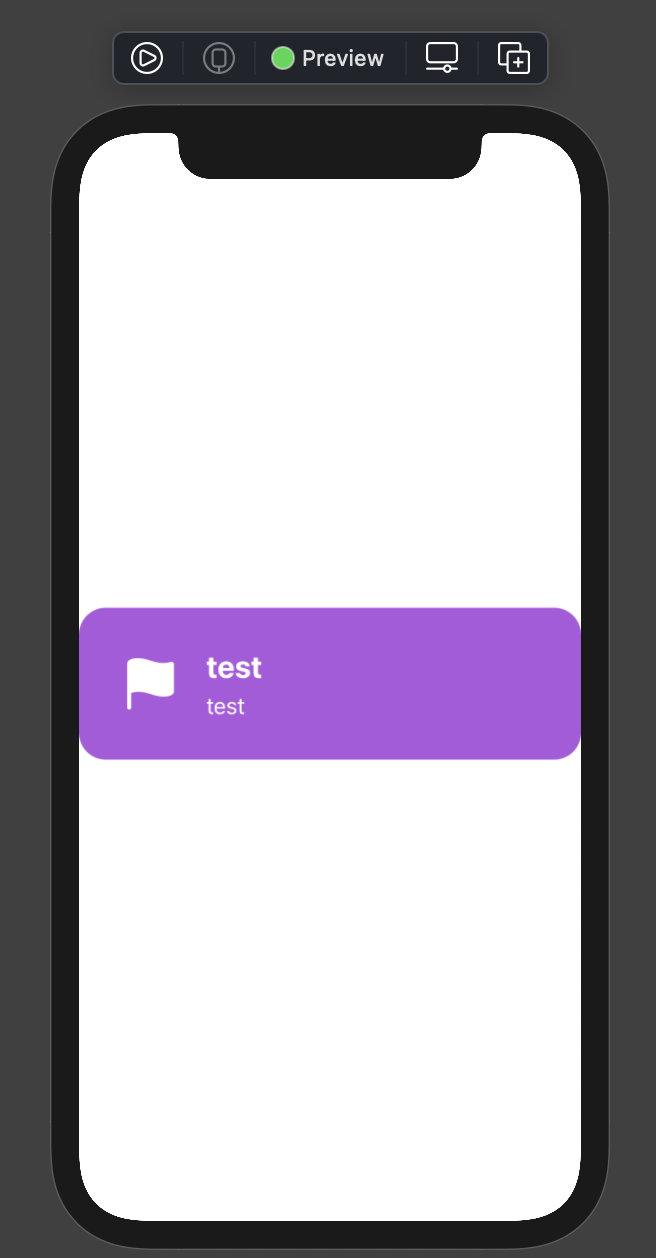

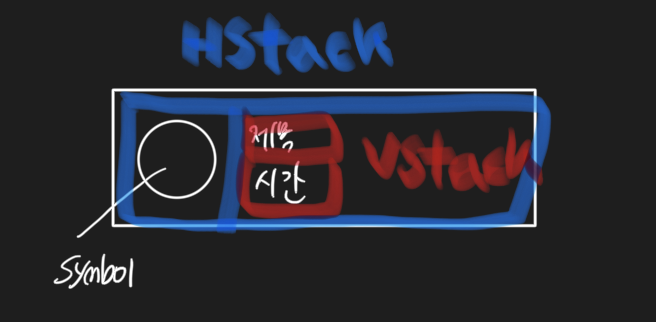

일반 VStack 카드 만들기
import SwiftUI
struct MyBasic: View{
var body: some View{
HStack(spacing: 20){
Image(systemName: "flag.fill")
.font(.system(size: 40))
.foregroundColor(.white)
VStack(alignment: .leading, spacing: 0){
Divider().opacity(0)
// Rectangle.frame(height:0)
Text("test")
.fontWeight(.bold)
.font(.system(size: 23))
.foregroundColor(.white)
Spacer().frame(height:5) //제목과 시간 간격
Text("test")
.foregroundColor(.white)
}
}
.padding(30)
.background(Color.purple)
.cornerRadius(20)
}
}

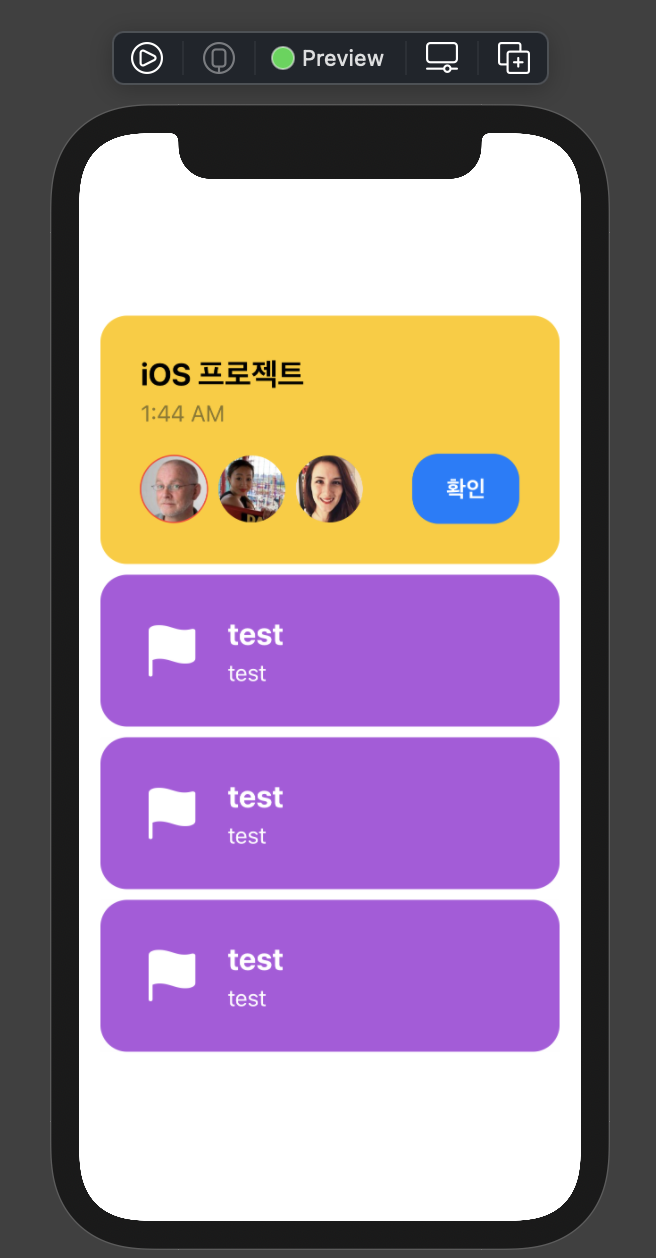

ContentView에서 만든 카드들 VStack으로 쌓기
import SwiftUI
struct ContentView: View{
var body: some View{
VStack{
MyCard()
MyBasic()
MyBasic()
MyBasic()
}
.padding()
}
}
그냥 파일 명으로 불러오면 됨

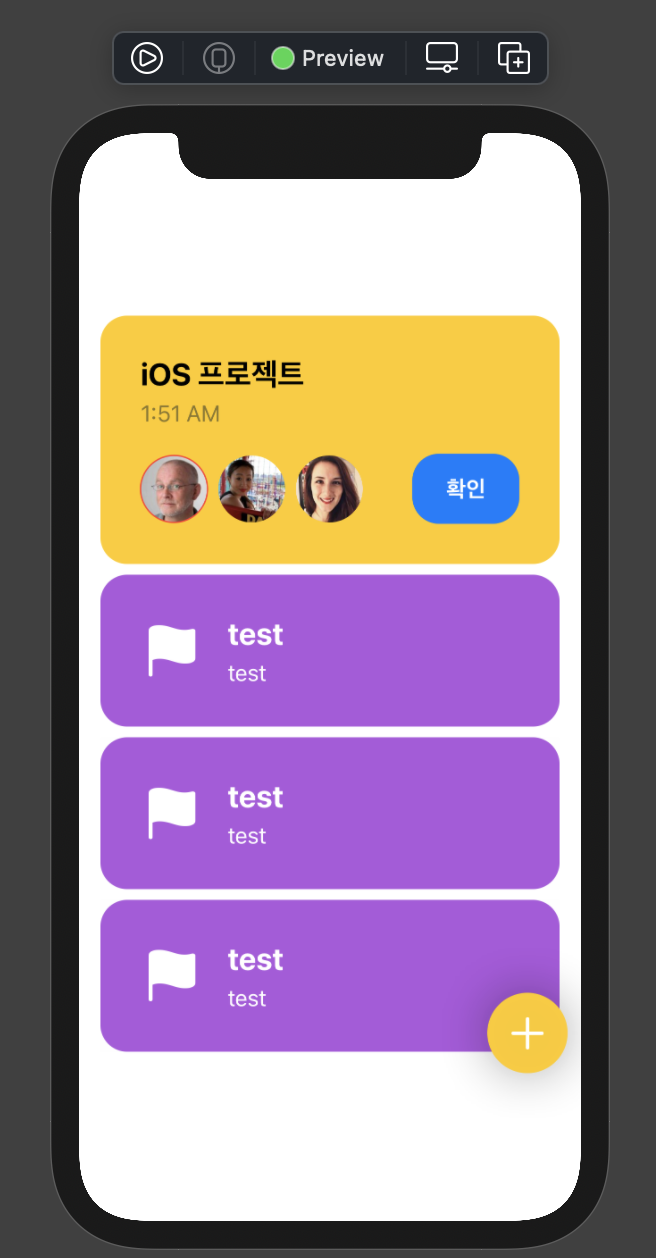

하단에 플러스 버튼 만들기
import SwiftUI
struct ContentView: View{
var body: some View{
ZStack(alignment: .bottomTrailing){
VStack{
MyCard()
MyBasic()
MyBasic()
MyBasic()
}
.padding()
Circle()
.foregroundColor(Color.yellow)
.frame(width: 60, height: 60)
.overlay(//sumbol 이미지 넣기
Image(systemName: "plus")
.font(.system(size:30))
.foregroundColor(.white)
)
.padding(.trailing, 10)
.shadow(radius: 20)
}
}
}

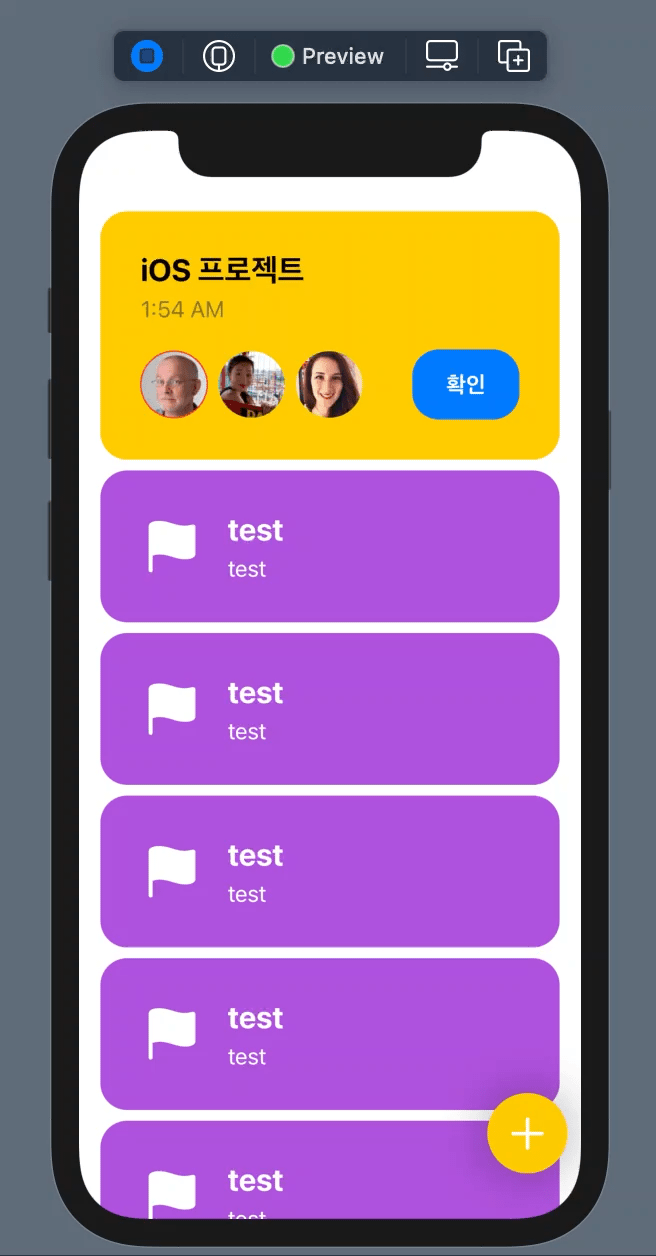

스크롤뷰 처리하기
import SwiftUI
struct ContentView: View{
var body: some View{
ZStack(alignment: .bottomTrailing){
ScrollView{
VStack{
MyCard()
MyBasic()
MyBasic()
MyBasic()
MyBasic()
MyBasic()
MyBasic()
}
.padding()
}
Circle()
.foregroundColor(Color.yellow)
.frame(width: 60, height: 60)
.overlay(//sumbol 이미지 넣기
Image(systemName: "plus")
.font(.system(size:30))
.foregroundColor(.white)
)
.padding(.trailing, 10)
.shadow(radius: 20)
}
}
}
상단 제목, 햄버거 바, 프로필 추가
import SwiftUI
struct ContentView: View {
var body: some View {
ZStack(alignment: .bottomTrailing){
VStack(alignment: .leading, spacing: 0){
HStack{
Image(systemName: "line.horizontal.3")
.font(.largeTitle)
Spacer()
Image(systemName: "person.crop.circle.fill")
.font(.largeTitle)
}.padding(.top, 20)
.padding(.horizontal, 20)
Text("TODO LIST")
.font(.system(size: 40))
.fontWeight(.black)
.padding(.horizontal, 20)
.padding(.top,20)
ScrollView{
VStack{
MyCard()
MyBasic()
MyBasic()
MyBasic()
MyBasic()
MyBasic()
MyBasic()
}.padding()
}
}
Circle()
.foregroundColor(Color.yellow)
.frame(width:60, height: 60)
.overlay(Image(systemName: "plus")
.font(.system(size:30))
.foregroundColor(.white))
.padding(10)
.shadow(radius: 20)
}
}
}

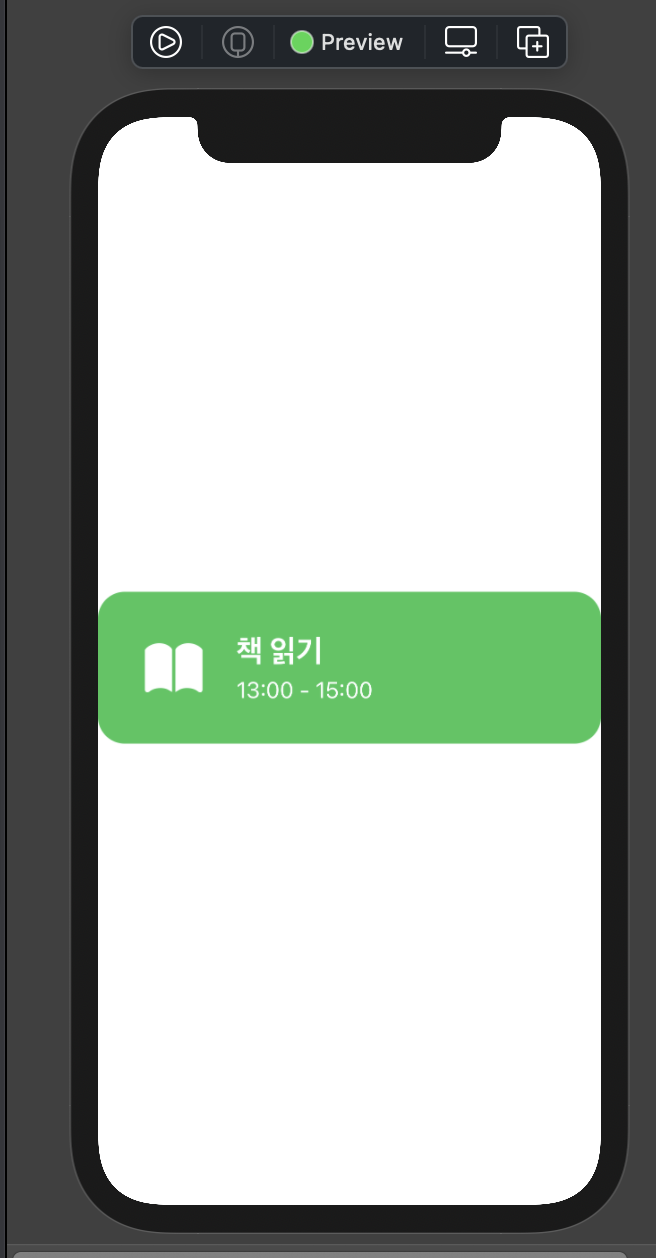

MyBasic()안에 매개변수를 만들어서 자체 인스턴스를 생성할 때 커스텀 카드를 만들 수 있게 하기
import SwiftUI
struct MyProject: View{
var icon : String
var title : String
var start: String
var end : String
var bgColor : Color
var body: some View{
HStack(spacing: 20){
Image(systemName: icon)
.font(.system(size: 40))
.foregroundColor(.white)
VStack(alignment: .leading, spacing: 0){
Divider().opacity(0)
// Rectangle.frame(height:0)
Text(title)
.fontWeight(.bold)
.font(.system(size: 23))
.foregroundColor(.white)
Spacer().frame(height:5)
Text("\(start) - \(end)")
.foregroundColor(.white)
}
}
.padding(30)
.background(bgColor)
.cornerRadius(20)
}
}
//매개변수 넣어주기
struct MyProject_Previews: PreviewProvider{
static var previews: some View{
MyProject(icon: "book.fill", title: "책 읽기", start: "13:00", end: "15:00", bgColor: Color.green)
}
}

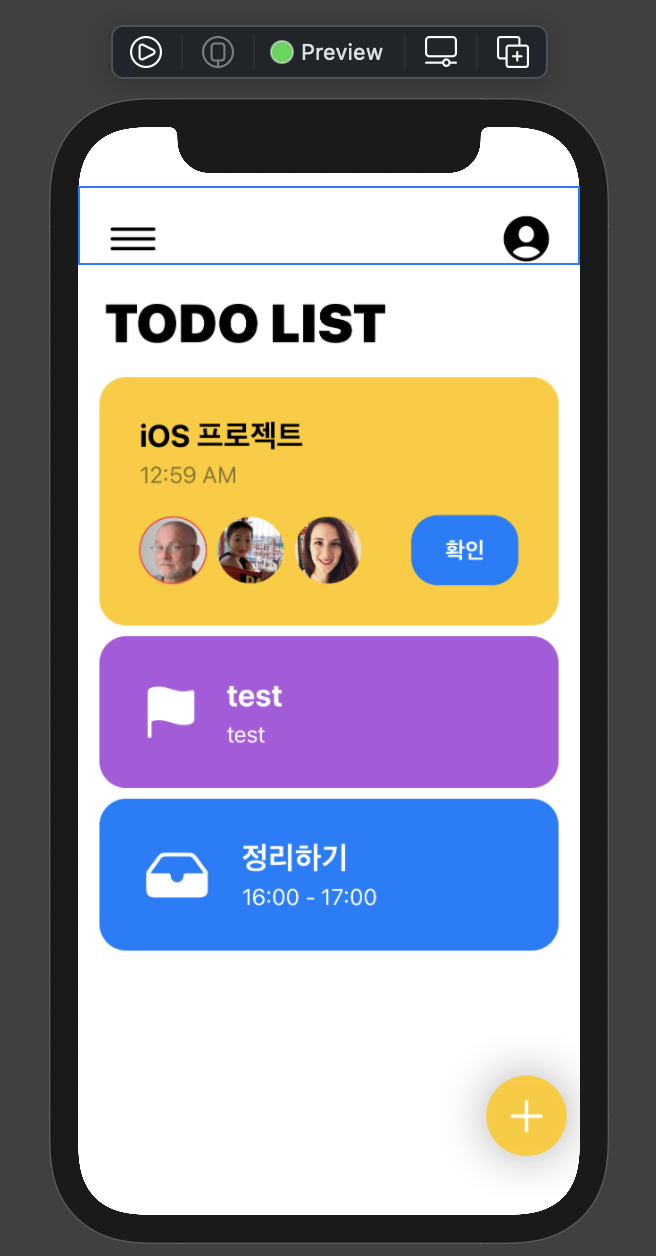

ContentView에 커스텀 카드 적용하기
import SwiftUI
struct ContentView: View {
var body: some View {
ZStack(alignment: .bottomTrailing){
VStack(alignment: .leading, spacing: 0){
HStack{
Image(systemName: "line.horizontal.3")
.font(.largeTitle)
Spacer()
Image(systemName: "person.crop.circle.fill")
.font(.largeTitle)
}.padding(.top, 20)
.padding(.horizontal, 20)
Text("TODO LIST")
.font(.system(size: 40))
.fontWeight(.black)
.padding(.horizontal, 20)
.padding(.top,20)
ScrollView{
VStack{
MyCard()
MyProject(icon: "tray.fill", title: "책상 정리하기", start: "13:00", end: "14:00", bgColor: Color.blue)
MyProject(icon: "book.fill", title: "책 읽기", start: "14:00", end: "16:00", bgColor: Color.green)
MyProject(icon: "tray.fill", title: "기숙사 짐 싸기", start: "16:00", end: "18:00", bgColor: Color.red)
MyBasic()
}.padding()
}
}
Circle()
.foregroundColor(Color.yellow)
.frame(width:60, height: 60)
.overlay(Image(systemName: "plus")
.font(.system(size:30))
.foregroundColor(.white))
.padding(10)
.shadow(radius: 20)
}
}
}

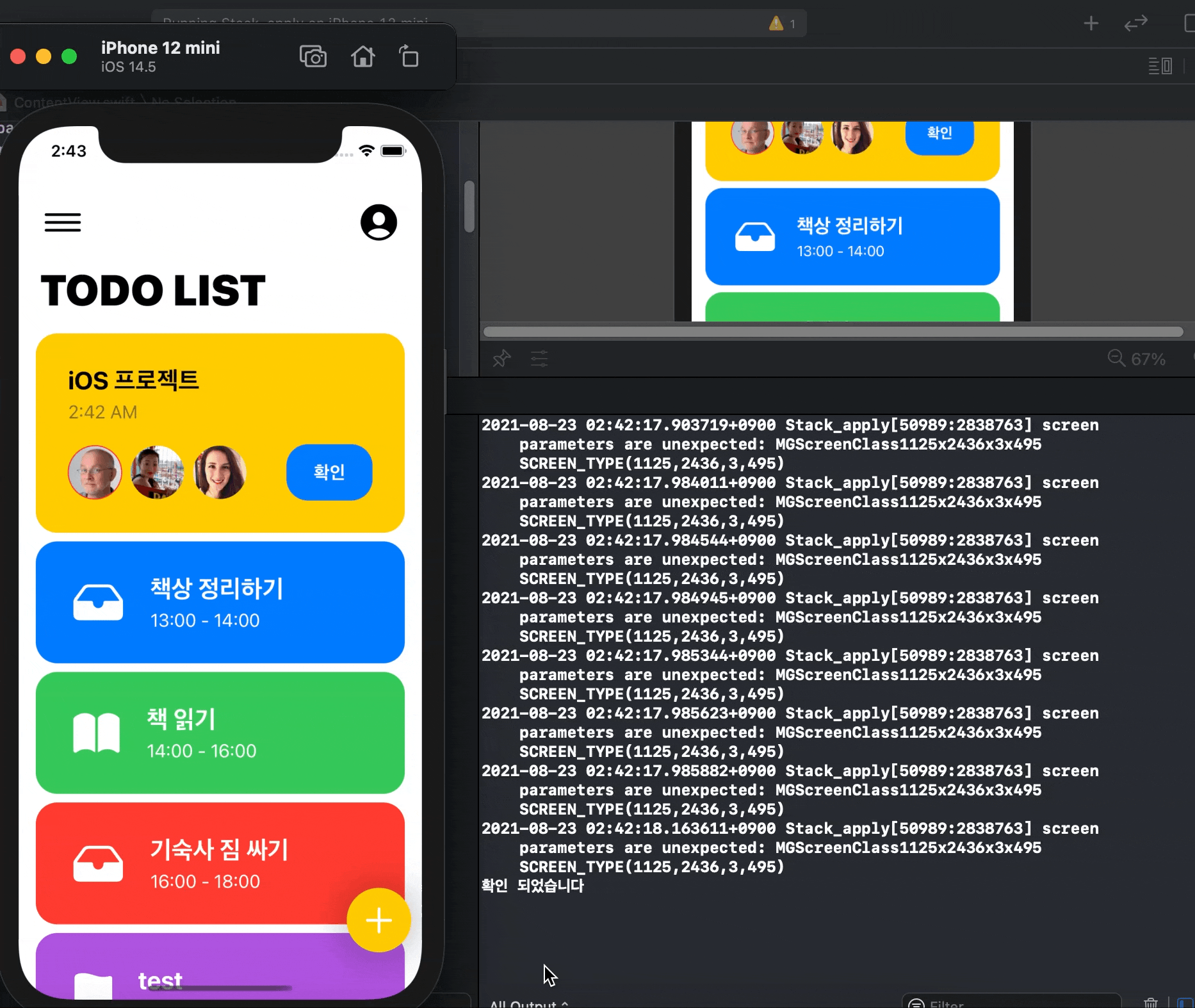

버튼 처리하기 (팝업 띄우기)
import SwiftUI
struct MyCard : View {
@State
var shouldShowAlert : Bool = false
let date = Date()
var body: some View{
VStack(alignment: .leading, spacing: 0){
Rectangle().frame(height:0)
Text("iOS 프로젝트")
.font(.system(size:23))
.fontWeight(.bold)
.padding(.bottom,5)
Text(date, style: .time)
.foregroundColor(.secondary)
Spacer().frame(height:20)
HStack{
Image("1")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
.overlay(
Circle()
.stroke(lineWidth: 1)
.foregroundColor(Color.red))
Image("2")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Image("3")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Spacer()
Button(action:{
print("확인 되었습니다")
self.shouldShowAlert = true
}){//버튼 생김새
Text("확인")
.fontWeight(.bold)
.foregroundColor(.white)
.padding()
.frame(width: 80)
.background(Color.blue)
.cornerRadius(20)
}.alert(isPresented: $shouldShowAlert){
Alert(title: Text("완료 하셨나요?"))
}
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}
Button의 기본 형태
Button(action: {
버튼 액션처리
}){
버튼 생김새
}
버튼의 팝업 창을 띄우기 위해서는 @State 이용
struct 구조는 값이 고정되어 있음 (class는 참조형)
struct 안에서 변수를 사용할 수 있도록 (값을 설정하고 변경할 수 있도록) @State 사용
alert안에서는 변수 사용시 $를 붙여야 함
