Published 2021. 8. 23. 06:28
[SwiftUI fundamental Tutorial] List 강의/etc

위 글은 유튜브 정대리님의 SwiftUI fundamental Tutorial 강좌를 보고 작성한 정리글로

자세한 내용은 유튜브를 통해 확인하시길 권장합니다.







SwiftUI의 List는 UIKit에서 사용한 TableView, CollectionView와 같다고 보면 됨





import SwiftUI

struct MyList: View{

    var body: some View{

        List{
            Text("MY LIST")

        }

    }
}

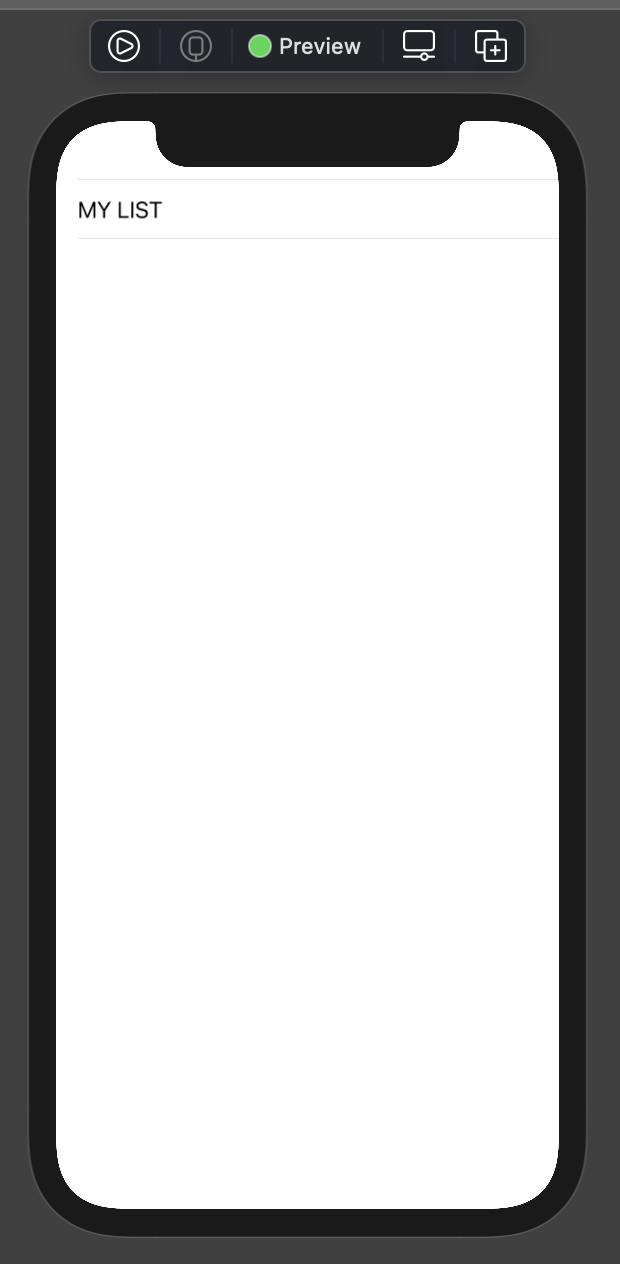

List를 쓰면 목차 형식으로 나타남













List 안에 요소를 여러개 넣으면

import SwiftUI

struct MyList: View{

    var body: some View{


        List{
            Text("MY LIST")
            Text("MY LIST")
            Text("MY LIST")
            Text("MY LIST")
            Text("MY LIST")
            Text("MY LIST")
        }

    }
}

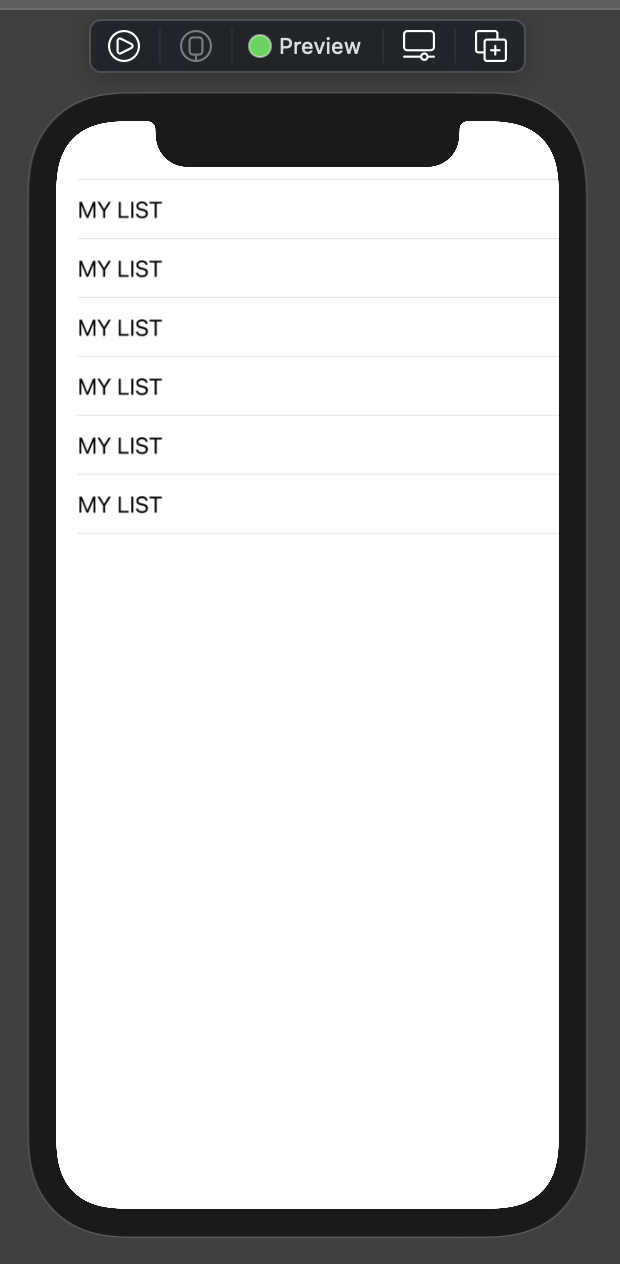

이런 형태로 출력

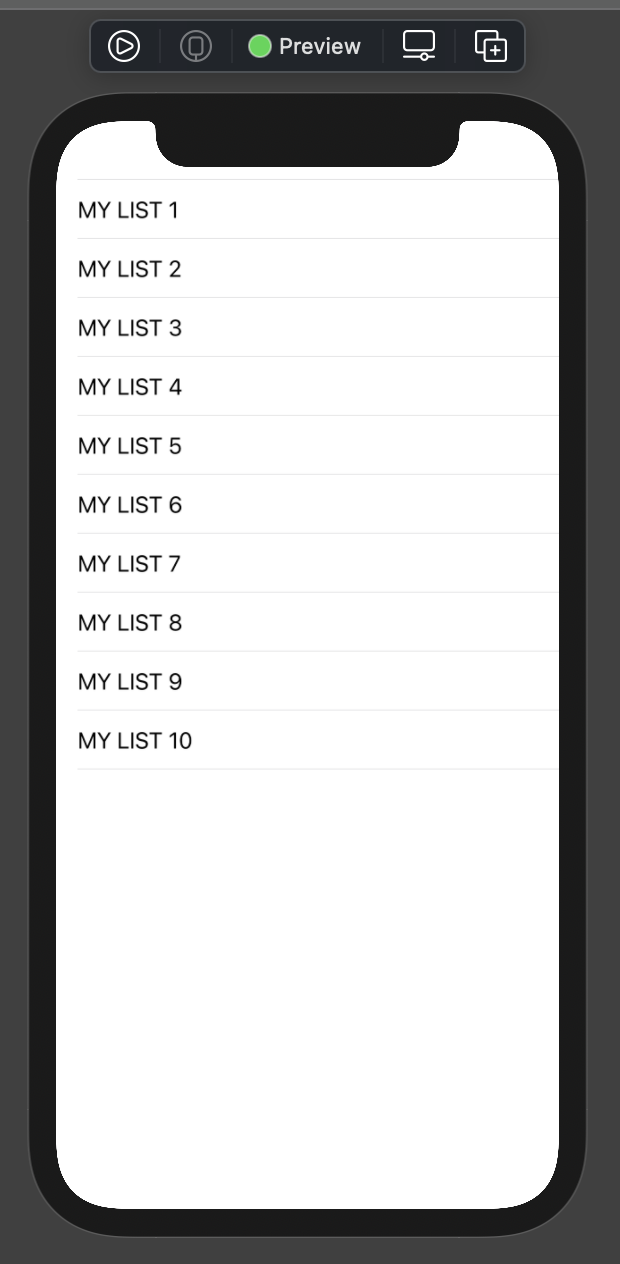

반복문(ForEach)을 사용하여 List를 처리하기

(ForEach 사용시 반드시 id를 부여해야 함)





첫번째 방법

import SwiftUI

struct MyList: View{

    var body: some View{

        List{
            ForEach(1...10, id: \.self){
                Text("MY LIST \($0)")
            }
        }

    }
}

두번째 방법

import SwiftUI

struct MyList: View{

    var body: some View{

        List{
            ForEach(1...10, id: \.self){
                itemIndex in Text("MY LIST \(itemIndex)")
            }
        }

    }
}

itemIndex 변수를 만들어서 Text에 넣기



첫번쨰, 두번쨰 결과는 동일함

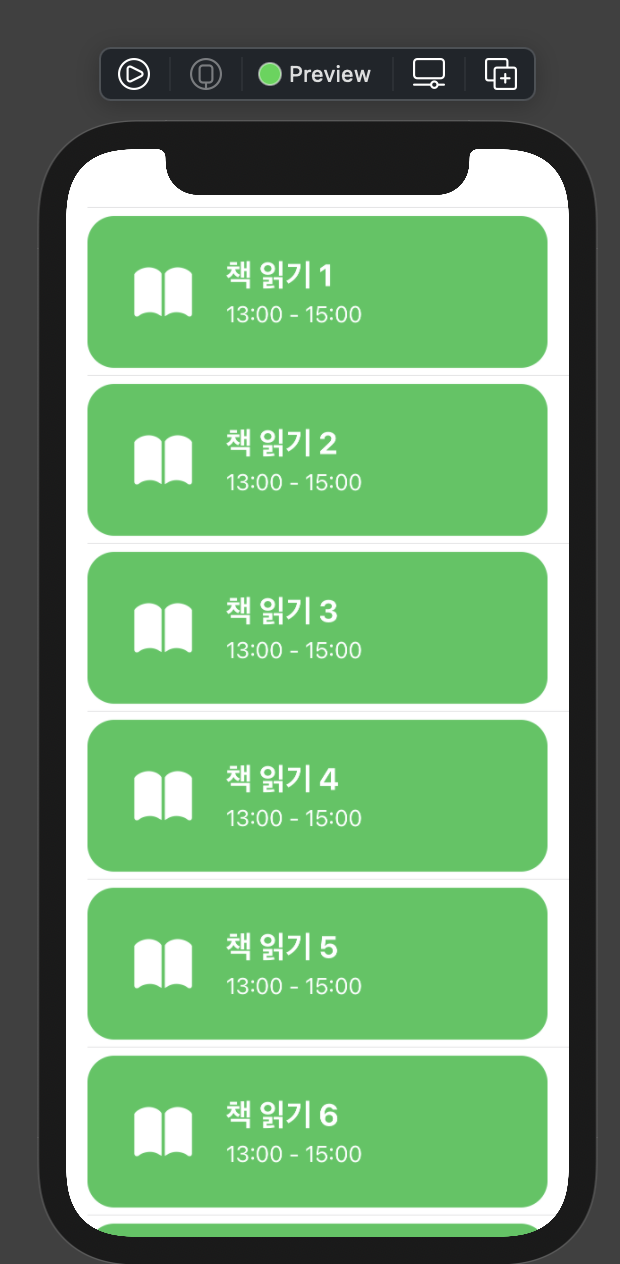

앞 전 Layout 시간에서 만든 커스텀 카드를 List에 넣어 보기

import SwiftUI

struct MyList: View{

    var body: some View{

        List{
            ForEach(1...10, id: \.self){
                itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                			 start: "13:00", end: "15:00", bgColor: Color.green)
            }
        }

    }
}

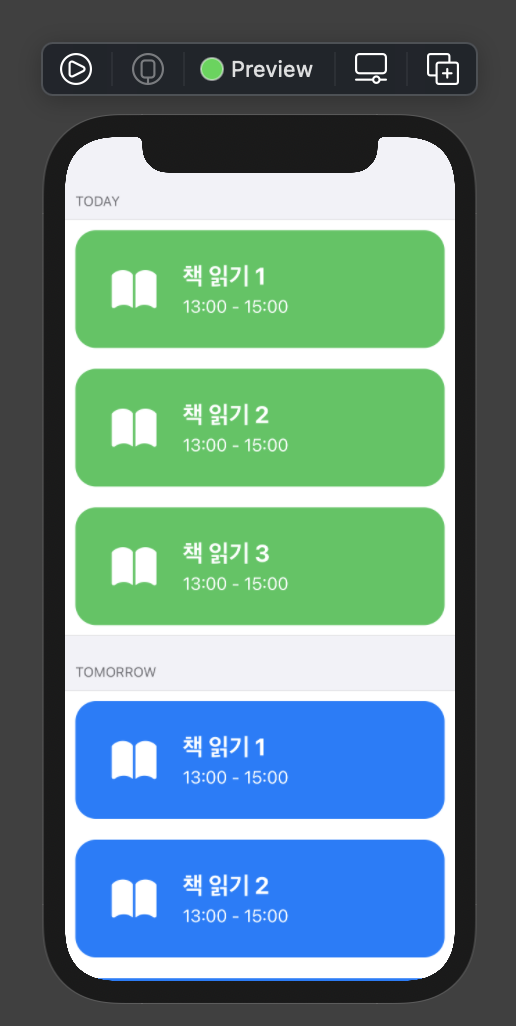

import SwiftUI

struct MyList: View{

    var body: some View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                          start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in
                    MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                              start: "13:00", end: "15:00", bgColor: Color.blue)
                }
            }
        }

    }
}

List안에 Section을 만들어서 구분할 수 있음



Section 사용 구조

List{

    Section(header: Text("Section 명")){

        리스트 내용...

    }

}















List 자체에 속성 부여 가능

import SwiftUI

struct MyList: View{

    var body: some View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in //Text("MY LIST \(itemIndex)")
                    MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)", start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in //Text("MY LIST \(itemIndex)")
                    MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)", start: "13:00", end: "15:00", bgColor: Color.blue)
                }
            }
        }

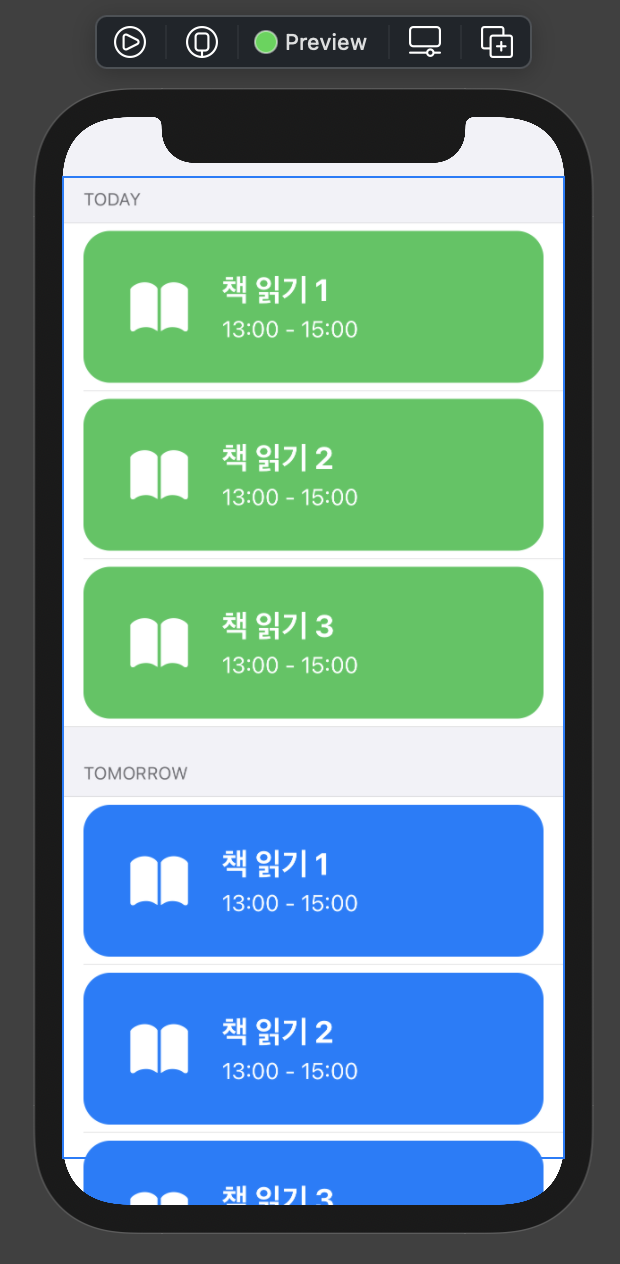

        .listStyle(GroupedListStyle())

    }
}

.listStyle(GroupedListStyle())





import SwiftUI

struct MyList: View{

    var body: some View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                          start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.blue)
                }
            }
        }

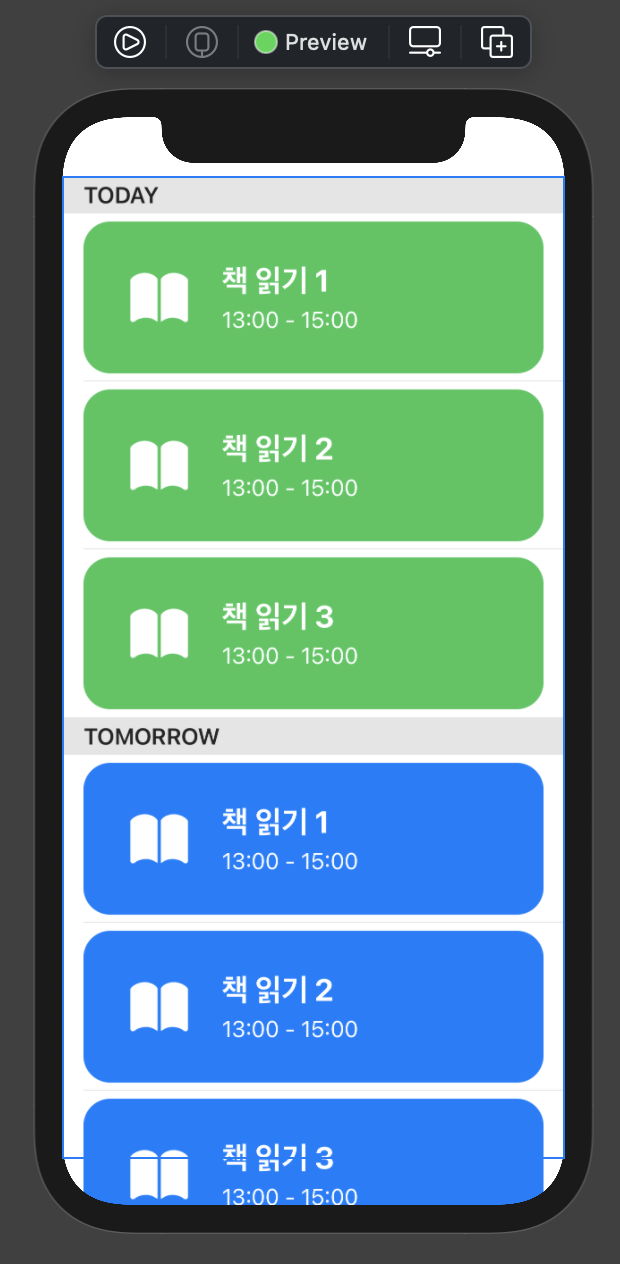

        .listStyle(PlainListStyle()) //default listStyle

    }
}

.listStyle(PlainListStyle())

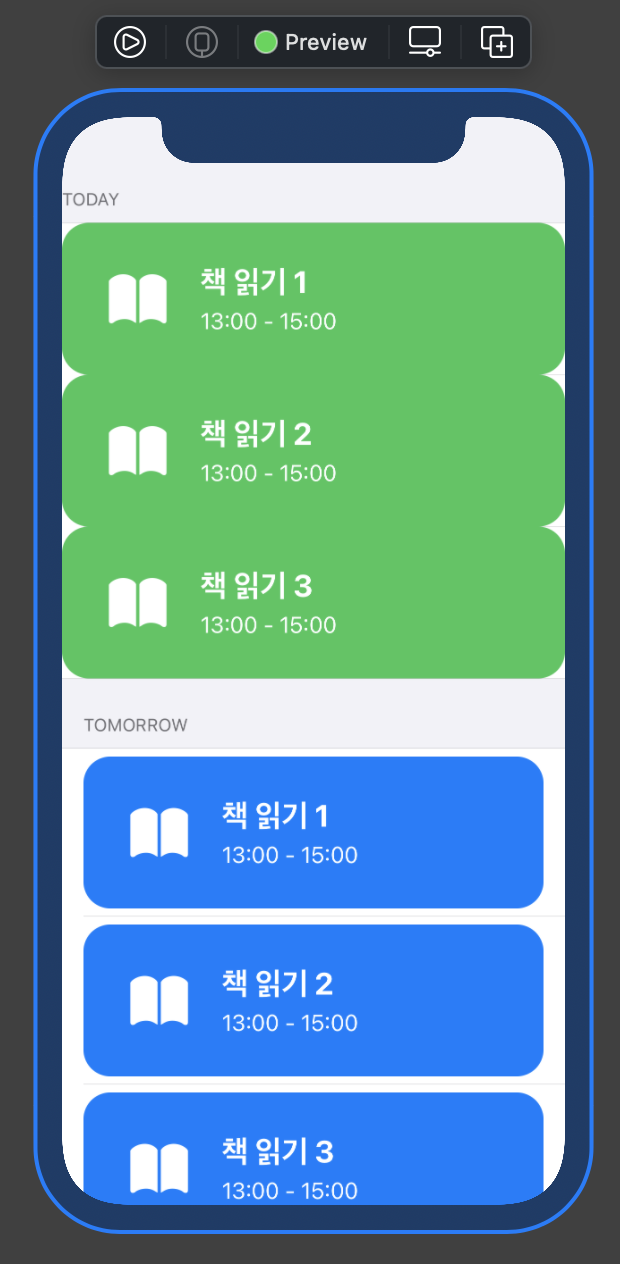

listRowInsets(EdgeInsets.init()): List 요소들 간의 간격 조절 가능

import SwiftUI

struct MyList: View{

    var body: some View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }
            .listRowInsets(EdgeInsets.init())

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                          start: "13:00", end: "15:00", bgColor: Color.blue)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 30, bottom: 10, trailing: 10))
        }
        .listStyle(GroupedListStyle())


    }
}



init()값이 비워져 있으면 간격이 0으로 붙어져서 나옴





import SwiftUI

struct MyList: View{

    var body: some View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                          start: "13:00", end: "15:00", bgColor: Color.blue)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 30, bottom: 10, trailing: 10))
        }
        .listStyle(GroupedListStyle())


    }
}

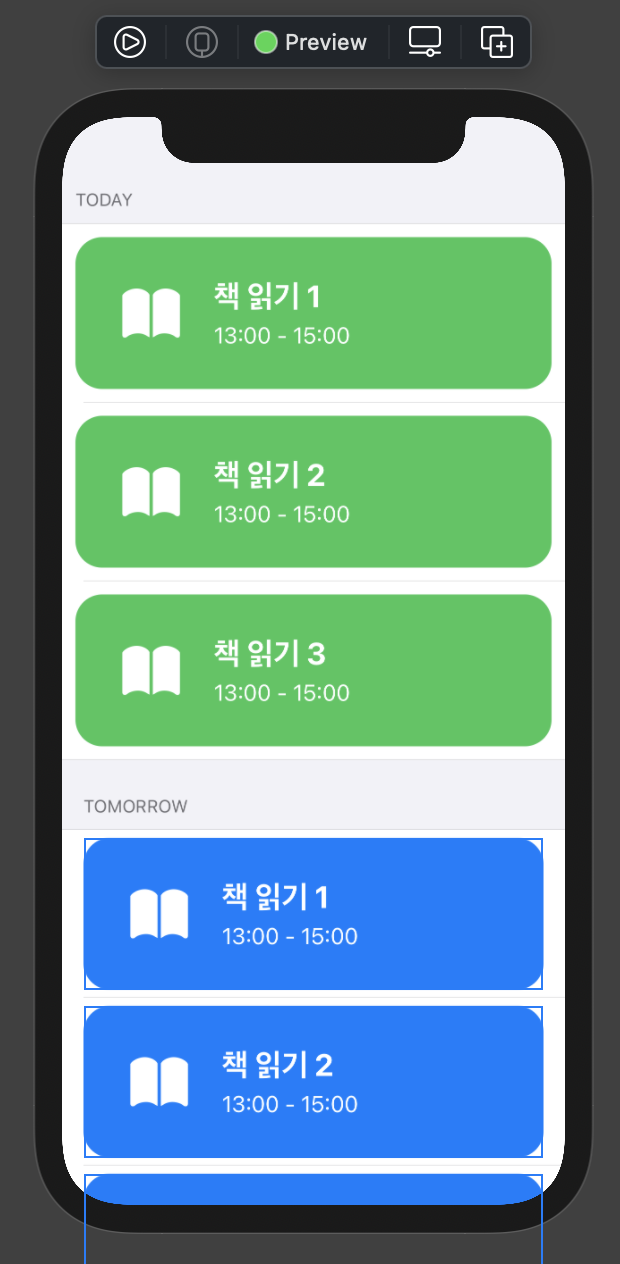

List 목록 선 지우기

import SwiftUI

struct MyList: View{

    init(){
        if #available(iOS 14.0, *){

        }else{
            UITableView.appearance().tableFooterView = UIView()
        }
        UITableView.appearance().separatorStyle = .none

    }
    var body: some View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.blue).hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10))
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 30, bottom: 10, trailing: 10))
        }
        .listStyle(GroupedListStyle())


    }
}

코드 그대로 쳤는데 강의 이후로 이루어진 업데이트 때문인지 이렇게 해서는 List 목록 선이 안 없어짐







댓글에 다른 구독자 분이 남겨주신 List 목록 선 지우는 방법

import SwiftUI

struct HideRowSeparatorModifier: ViewModifier {
    static let defaultListRowHeight: CGFloat = 44

    var insets: EdgeInsets
    var background: Color
    init(insets: EdgeInsets, background: Color){
        self.insets = insets

        var alpha: CGFloat = 0

        UIColor(background).getWhite(nil, alpha: &alpha)
        assert(alpha == 1, "")
        self.background = background
    }

    func body(content: Content) -> some View {
        content
            .padding(insets)
            .frame(
                minWidth: 0, maxWidth: .infinity, minHeight: Self.defaultListRowHeight,   alignment: .leading
            )
            .listRowInsets(EdgeInsets())
            .background(background)
    }
}
extension EdgeInsets{
    static let defaultListRowInsets = Self(top: 10, leading: 10, bottom: 10, trailing: 10)
}
extension View {
    func hideRowSeparator(insets: EdgeInsets = .defaultListRowInsets, background: Color = .white)
    -> some View {
        modifier(HideRowSeparatorModifier(insets: insets, background: background))
    }
}


struct MyList: View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in  MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                            start: "13:00", end: "15:00", bgColor: Color.blue).hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10))
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))
        }
        .listStyle(GroupedListStyle())


    }
}

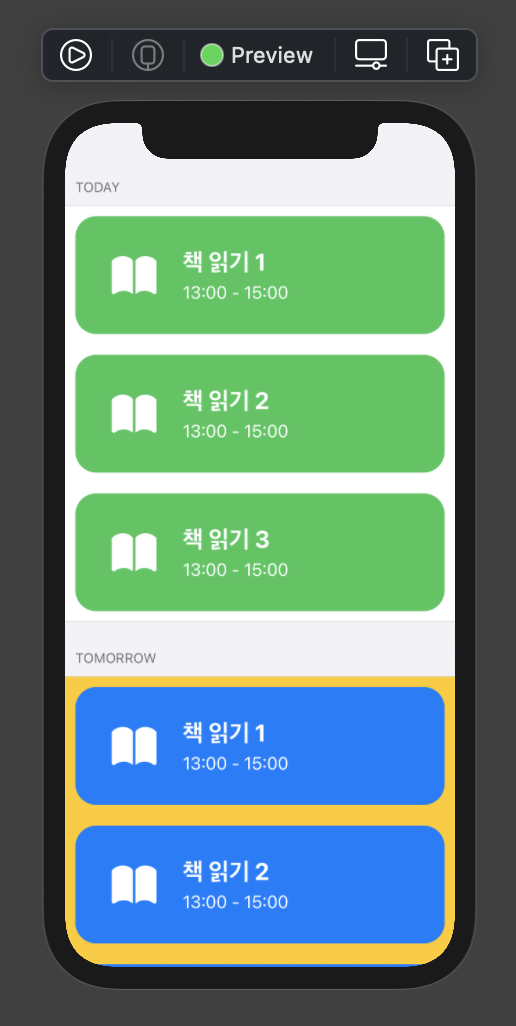

List 목록 배경 색상 설정

import SwiftUI

struct HideRowSeparatorModifier: ViewModifier {
    static let defaultListRowHeight: CGFloat = 44

    var insets: EdgeInsets
    var background: Color
    init(insets: EdgeInsets, background: Color){
        self.insets = insets

        var alpha: CGFloat = 0

        UIColor(background).getWhite(nil, alpha: &alpha)
        assert(alpha == 1, "")
        self.background = background
    }

    func body(content: Content) -> some View {
        content
            .padding(insets)
            .frame(
                minWidth: 0, maxWidth: .infinity, minHeight: Self.defaultListRowHeight,   alignment: .leading
            )
            .listRowInsets(EdgeInsets())
            .background(background)
    }
}
extension EdgeInsets{
    static let defaultListRowInsets = Self(top: 10, leading: 10, bottom: 10, trailing: 10)
}
extension View {
    func hideRowSeparator(insets: EdgeInsets = .defaultListRowInsets, background: Color = .white)
    -> some View {
        modifier(HideRowSeparatorModifier(insets: insets, background: background))
    }
}


struct MyList: View{

        List{

            Section(header: Text("TODAY")){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.green)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))

            Section(header: Text("TOMORROW")){
                ForEach(1...3, id: \.self){
                    itemIndex in  MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                            start: "13:00", end: "15:00", bgColor: Color.blue)
                                            .hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10),
                                            background(Color.yellow))
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))
        }
        .listStyle(GroupedListStyle())


    }
}

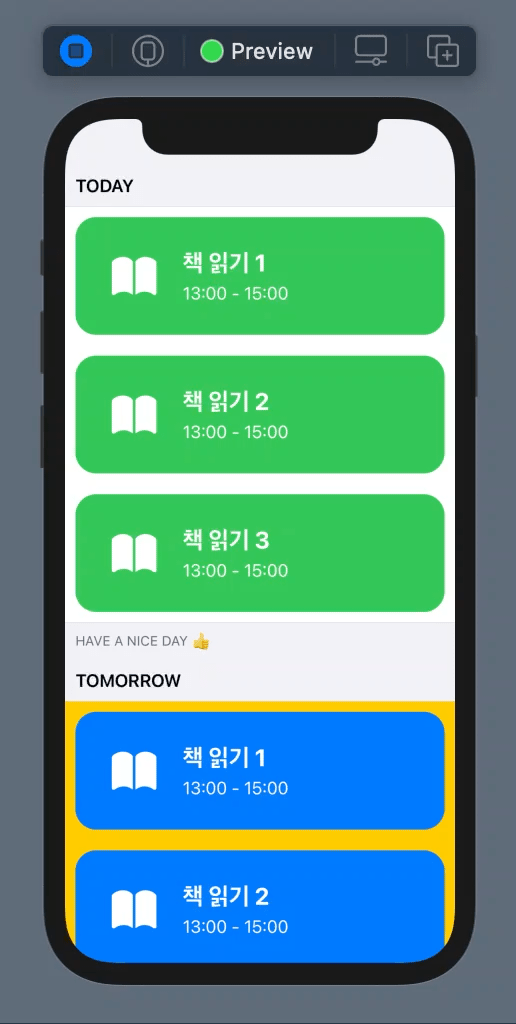

Section에 footer 추가, Text() 속성 부여

import SwiftUI

struct HideRowSeparatorModifier: ViewModifier {
    static let defaultListRowHeight: CGFloat = 44

    var insets: EdgeInsets
    var background: Color
    init(insets: EdgeInsets, background: Color){
        self.insets = insets

        var alpha: CGFloat = 0

        UIColor(background).getWhite(nil, alpha: &alpha)
        assert(alpha == 1, "")
        self.background = background
    }

    func body(content: Content) -> some View {
        content
            .padding(insets)
            .frame(
                minWidth: 0, maxWidth: .infinity, minHeight: Self.defaultListRowHeight,   alignment: .leading
            )
            .listRowInsets(EdgeInsets())
            .background(background)
    }
}
extension EdgeInsets{
    static let defaultListRowInsets = Self(top: 10, leading: 10, bottom: 10, trailing: 10)
}
extension View {
    func hideRowSeparator(insets: EdgeInsets = .defaultListRowInsets, background: Color = .white)
    -> some View {
        modifier(HideRowSeparatorModifier(insets: insets, background: background))
    }
}


struct MyList: View{

    var body: some View{

        List{

            Section(
                header:
                    Text("TODAY")
                    .font(.headline)
                    .foregroundColor(.black)
                ,footer:
                    Text("HAVE A NICE DAY 👍")
                ){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.green)
                                           .hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10))
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))

            Section(
                header:
                    Text("TOMORROW")
                    .font(.headline)
                    .foregroundColor(.black)
                ,footer:
                    Text("👍👍👍")
            ){
                ForEach(1...20, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.blue)
                                           .hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10),
                                           background: Color.yellow)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))
        }
        .listStyle(GroupedListStyle())


    }
}

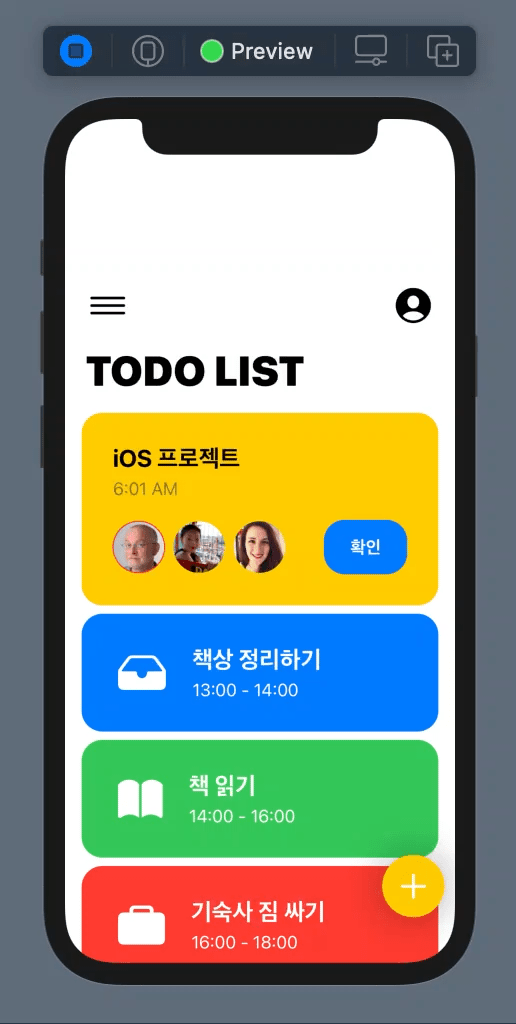

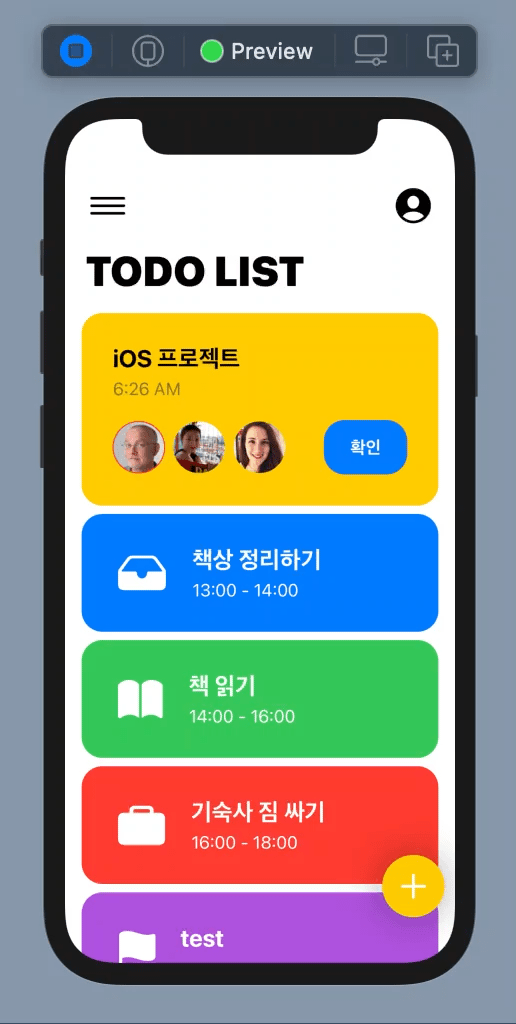

ContentView와 MyList 연동 (Navigation 적용하기)

import SwiftUI

struct ContentView: View {
    var body: some View {

        NavigationView{

            ZStack(alignment: .bottomTrailing){

                VStack(alignment: .leading, spacing: 0){

                    HStack{

                        NavigationLink(destination: MyList()){
                            Image(systemName: "line.horizontal.3")
                                .font(.largeTitle)
                                .foregroundColor(.black)

                        }

                        Spacer()

                        Image(systemName: "person.crop.circle.fill")
                            .font(.largeTitle)

                    }.padding(.top, 20)
                    .padding(.horizontal, 20)

                    Text("TODO LIST")
                        .font(.system(size: 40))
                        .fontWeight(.black)
                        .padding(.horizontal, 20)
                        .padding(.top,20)
                    ScrollView{
                                VStack{
                                        MyCard()
                                    MyProject(icon: "tray.fill", title: "책상 정리하기", start: "13:00", end: "14:00", bgColor: Color.blue)
                                    MyProject(icon: "book.fill", title: "책 읽기", start: "14:00", end: "16:00", bgColor: Color.green)
                                    MyProject(icon: "case.fill", title: "기숙사 짐 싸기", start: "16:00", end: "18:00", bgColor: Color.red)
                                    MyBasic()


                                }.padding()
                        }
                }
                Circle()
                    .foregroundColor(Color.yellow)
                    .frame(width:60, height: 60)
                    .overlay(Image(systemName: "plus")
                                .font(.system(size:30))
                                .foregroundColor(.white))
                    .padding(10)

                    .shadow(radius: 20)
            }//ZStack

        }//NavigationView

    }
}

struct ContentView_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}

- ContentView의 요소들을 NavigationView에 넣기

- 햄버거 바가 들어있는 HStack에 NavigationLink 적용









List 상단의 빈 공간은 navigationBarTitle 공간을 의미



List 상단의 navigationBarTitle 수정하기

import SwiftUI

struct HideRowSeparatorModifier: ViewModifier {
    static let defaultListRowHeight: CGFloat = 44

    var insets: EdgeInsets
    var background: Color
    init(insets: EdgeInsets, background: Color){
        self.insets = insets

        var alpha: CGFloat = 0

        UIColor(background).getWhite(nil, alpha: &alpha)
        assert(alpha == 1, "")
        self.background = background
    }

    func body(content: Content) -> some View {
        content
            .padding(insets)
            .frame(
                minWidth: 0, maxWidth: .infinity, minHeight: Self.defaultListRowHeight,   alignment: .leading
            )
            .listRowInsets(EdgeInsets())
            .background(background)
    }
}
extension EdgeInsets{
    static let defaultListRowInsets = Self(top: 10, leading: 10, bottom: 10, trailing: 10)
}
extension View {
    func hideRowSeparator(insets: EdgeInsets = .defaultListRowInsets, background: Color = .white)
    -> some View {
        modifier(HideRowSeparatorModifier(insets: insets, background: background))
    }
}


struct MyList: View{

    var body: some View{

        List{

            Section(
                header:
                    Text("TODAY")
                    .font(.headline)
                    .foregroundColor(.black)
                ,footer:
                    Text("HAVE A NICE DAY 👍")
                ){
                ForEach(1...3, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.green)
                                           .hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10))
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))

            Section(
                header:
                    Text("TOMORROW")
                    .font(.headline)
                    .foregroundColor(.black)
                ,footer:
                    Text("👍👍👍")
            ){
                ForEach(1...20, id: \.self){
                    itemIndex in MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)",
                                           start: "13:00", end: "15:00", bgColor: Color.blue)
                                           .hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10),
                                           background: Color.yellow)
                }
            }
            .listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))
        }
        .listStyle(GroupedListStyle())
        .navigationBarTitle("MY LIST")

    }
}









메인 페이지(ContentView) 상단의 빈 공간은 NavigationView를 Stack에 쌓아서 생김





ContentView의 빈 공간 없애기

import SwiftUI

struct ContentView: View {

    @State
    var isNavigationBarHidden : Bool = false

    var body: some View {

        NavigationView{

            ZStack(alignment: .bottomTrailing){

                VStack(alignment: .leading, spacing: 0){

                    HStack{

                        NavigationLink(destination: MyList()){
                            Image(systemName: "line.horizontal.3")
                                .font(.largeTitle)
                                .foregroundColor(.black)

                        }

                        Spacer()

                        Image(systemName: "person.crop.circle.fill")
                            .font(.largeTitle)

                    }.padding(.top, 20)
                    .padding(.horizontal, 20)

                    Text("TODO LIST")
                        .font(.system(size: 40))
                        .fontWeight(.black)
                        .padding(.horizontal, 20)
                        .padding(.top,20)
                    ScrollView{
                                VStack{
                                        MyCard()
                                    MyProject(icon: "tray.fill", title: "책상 정리하기", start: "13:00", end: "14:00", bgColor: Color.blue)
                                    MyProject(icon: "book.fill", title: "책 읽기", start: "14:00", end: "16:00", bgColor: Color.green)
                                    MyProject(icon: "case.fill", title: "기숙사 짐 싸기", start: "16:00", end: "18:00", bgColor: Color.red)
                                    MyBasic()


                                }.padding()
                        }
                }
                Circle()
                    .foregroundColor(Color.yellow)
                    .frame(width:60, height: 60)
                    .overlay(Image(systemName: "plus")
                                .font(.system(size:30))
                                .foregroundColor(.white))
                    .padding(10)

                    .shadow(radius: 20)
            }//ZStack

            .navigationTitle("Main")
            .navigationBarHidden(self.isNavigationBarHidden)
            .onAppear{
                self.isNavigationBarHidden = true
            }

        }//NavigationView

    }
}

@State는 값을 감지함



@State

var isNavigationBarHidden : Bool = false



isNavigationBarHidden을 default로 false 값 부여



NavigationView 안에

.navigationTitle("Main")

    .navigationBarHidden(self.isNavigationBarHidden)

    .onAppear{

        self.isNavigationBarHidden = true

    }

설정을 해주면 self.isNavigationBarHidden이 true가 되면서 뷰를 다시 그림













'강의 > etc' 카테고리의 다른 글

[SwiftUI fundamental Tutorial] GeometryReader  (0) 2021.08.31
[SwiftUI fundamental Tutorial] Navigation View  (0) 2021.08.25
[SwiftUI fundamental Tutorial] Layout  (0) 2021.08.23
[SwiftUI fundamental Tutorial] Stack  (0) 2021.08.23
[SwiftUI fundamental Tutorial] Image  (0) 2021.08.22
profile

Devlog

@덩이

포스팅이 좋았다면 "좋아요❤️" 또는 "구독👍🏻" 해주세요!

검색 태그

티스토리툴바
