위 글은 유튜브 정대리님의 SwiftUI fundamental Tutorial 강좌를 보고 작성한 정리글로
자세한 내용은 유튜브를 통해 확인하시길 권장합니다.
import SwiftUI
struct MyNavigationView: View{
var body: some View{
NavigationView{
Text("MyNavigationView")
.navigationTitle("안녕하세요")
}
}

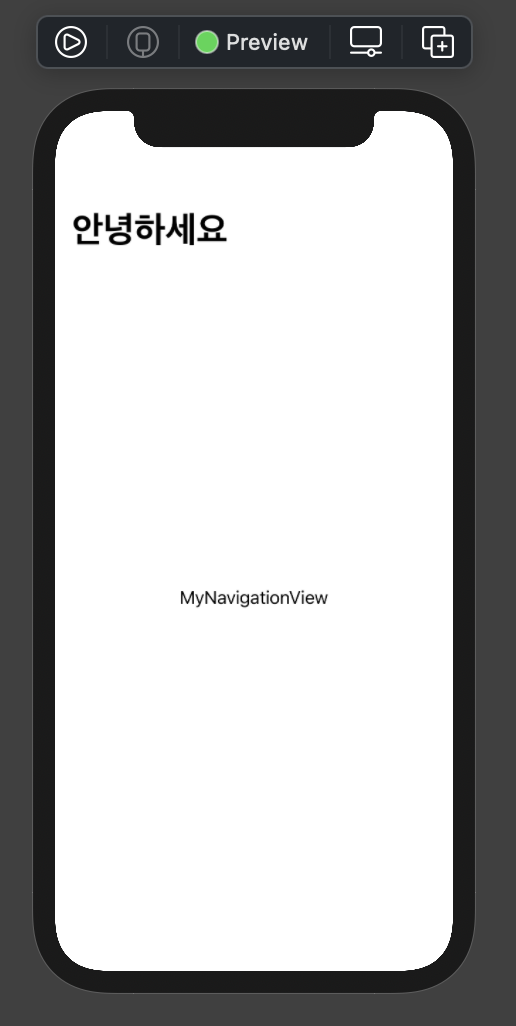

}.navigationTitle(): 좌측 상단에 들어옴
default=LargeTitle

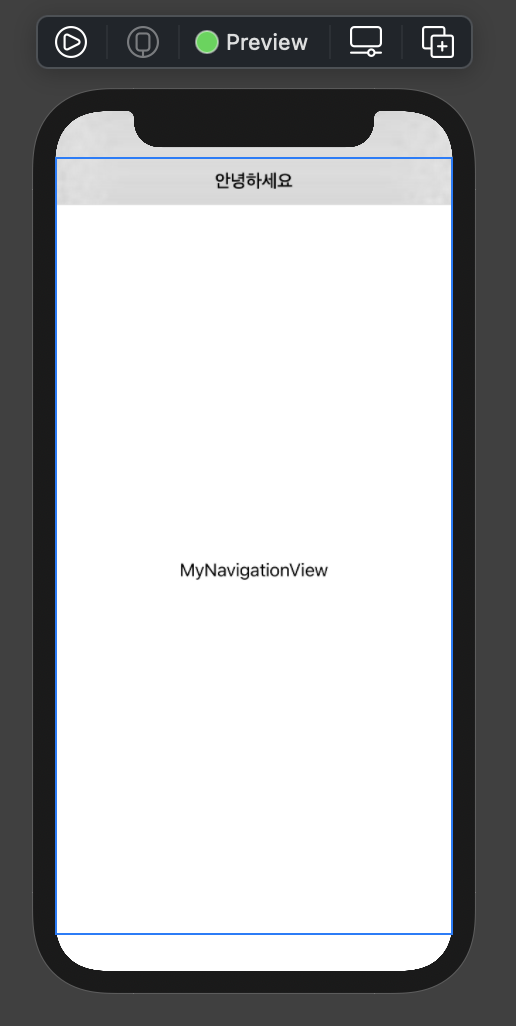

import SwiftUI
struct MyNavigationView: View{
var body: some View{
NavigationView{
Text("MyNavigationView")

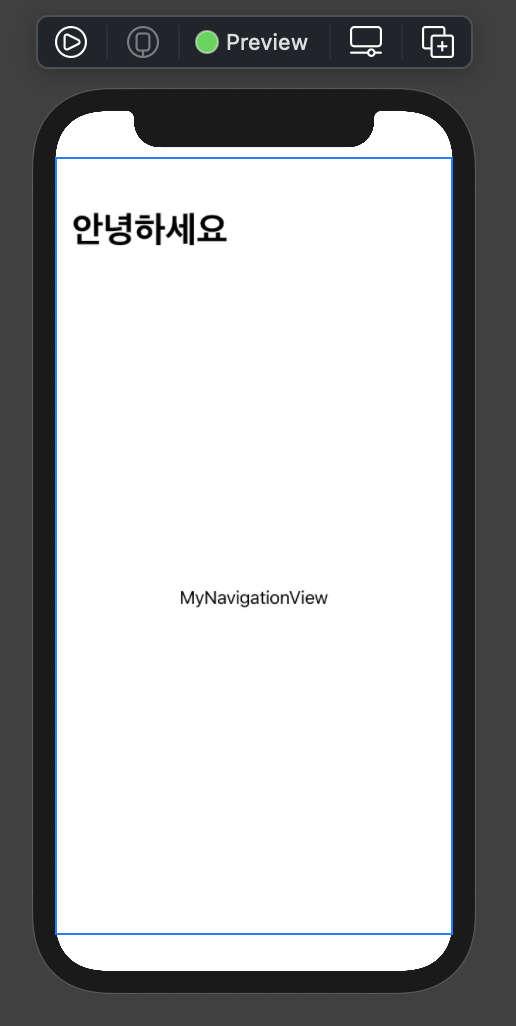

.navigationBarTitle("안녕하세요", displayMode: .automatic/inline/large)
}
}
}

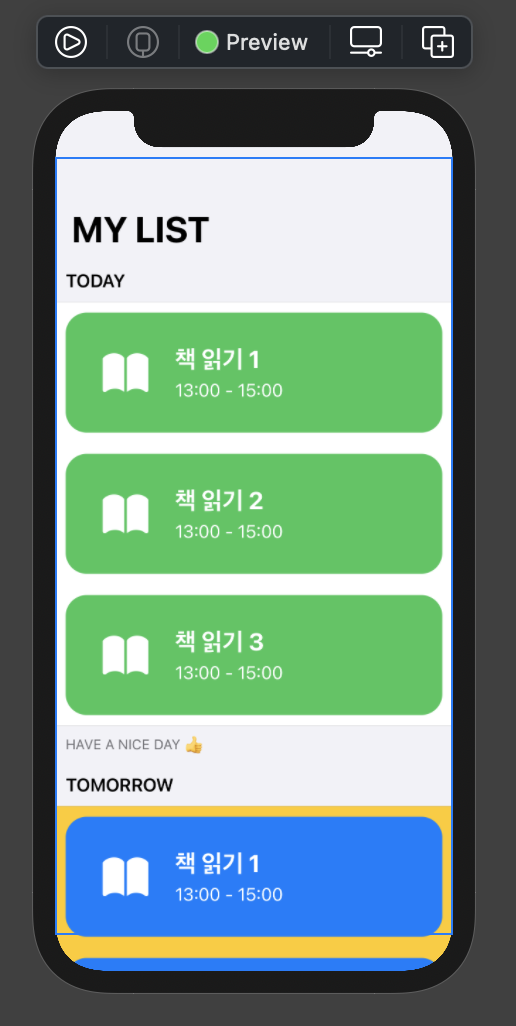

앞 시간에 만든 List에 displayMode 적용
import SwiftUI
struct MyNavigationView: View{
var body: some View{
NavigationView{
MyList()
.navigationBarTitle("안녕하세요", displayMode: .inline)
}
}
}

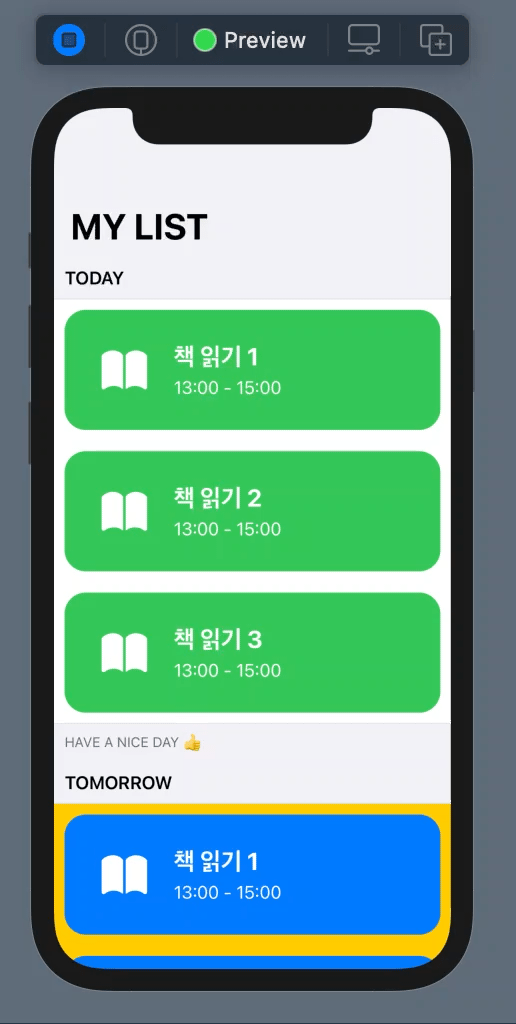

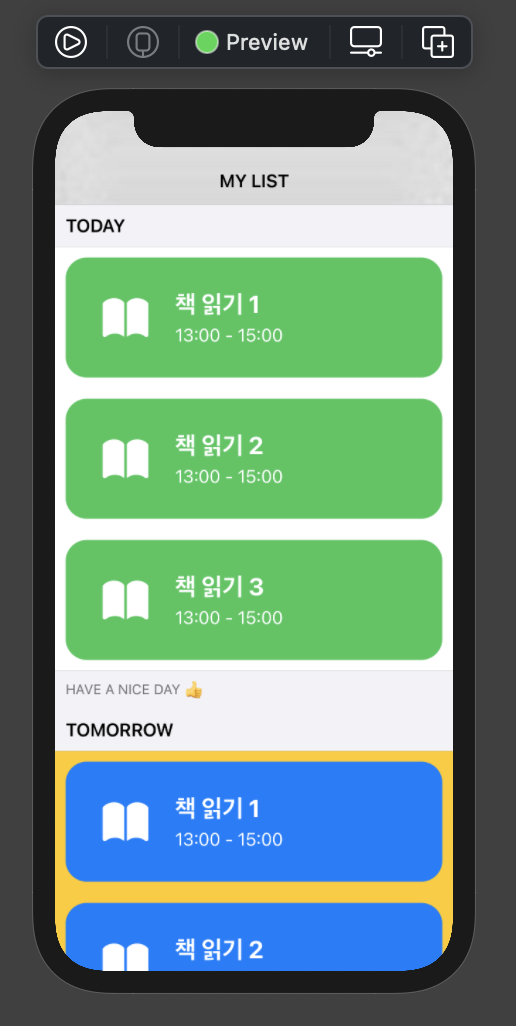

displayMode의 automatic과 large는 거의 동일하게 봐도 무방
large와 automatic 상태에서 스크롤을 할때 자동으로 inline 처리가 됨

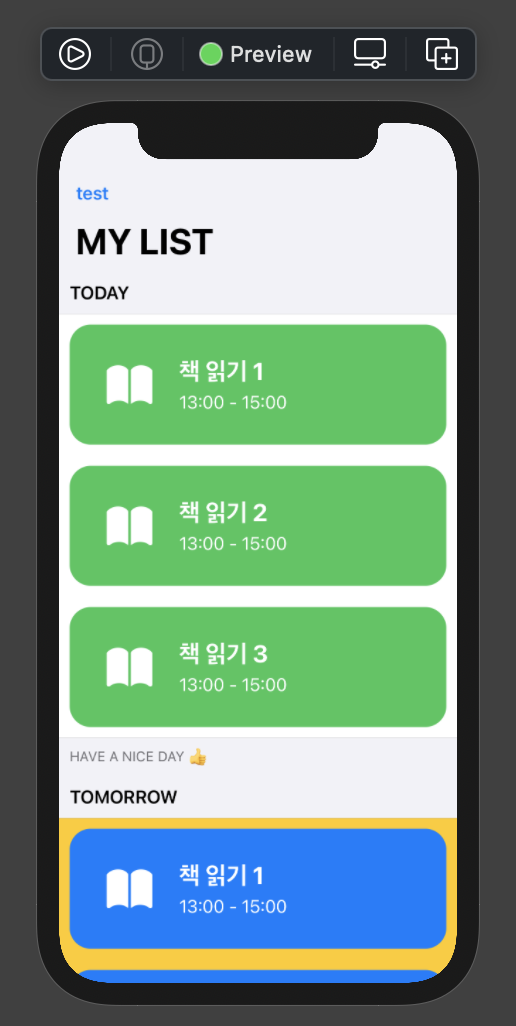

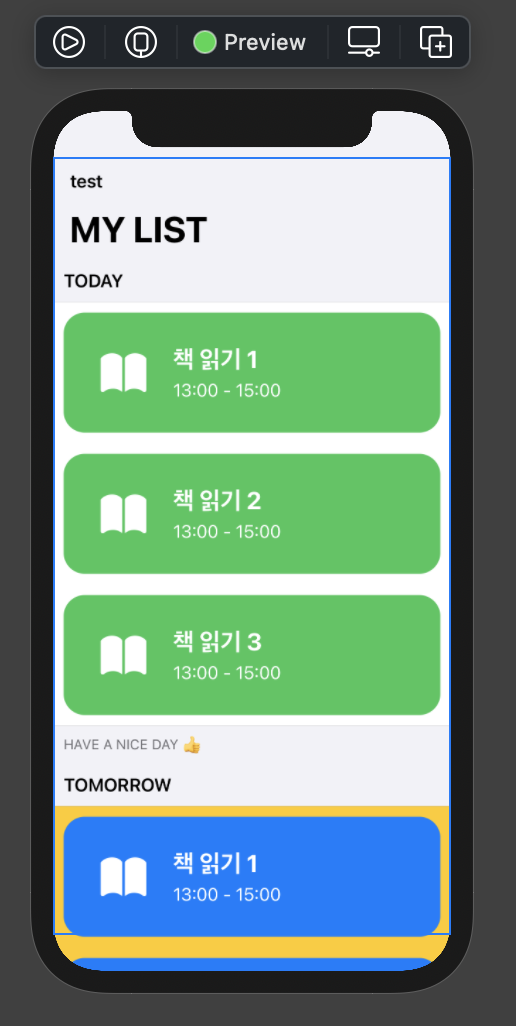

.navigationBarItems(): 상단 좌, 우에 아이템을 놓을 수 있음 (텍스트, 버튼 등등)
import SwiftUI
struct MyNavigationView: View{
var body: some View{
NavigationView{
MyList()
.navigationBarTitle("안녕하세요")
.navigationBarItems(leading: Text("test"))
}
}
}
import SwiftUI
struct MyNavigationView: View{
var body: some View{
NavigationView{
MyList()
.navigationBarTitle("안녕하세요")
.navigationBarItems(leading: Button(action:{
print("클릭 됨")
}){
Text("test")
})
}
}
}
강의 보면 디버그 프리뷰할 때 디버깅 창에 print 된 값이 뜨는데 난 왜 안뜨지
코드에 문제가 있는게 아니라 설정에 문제가 있는 것 같음 시뮬레이터 돌릴 때는 디버깅 창에 출력 잘 됨 ㅠ

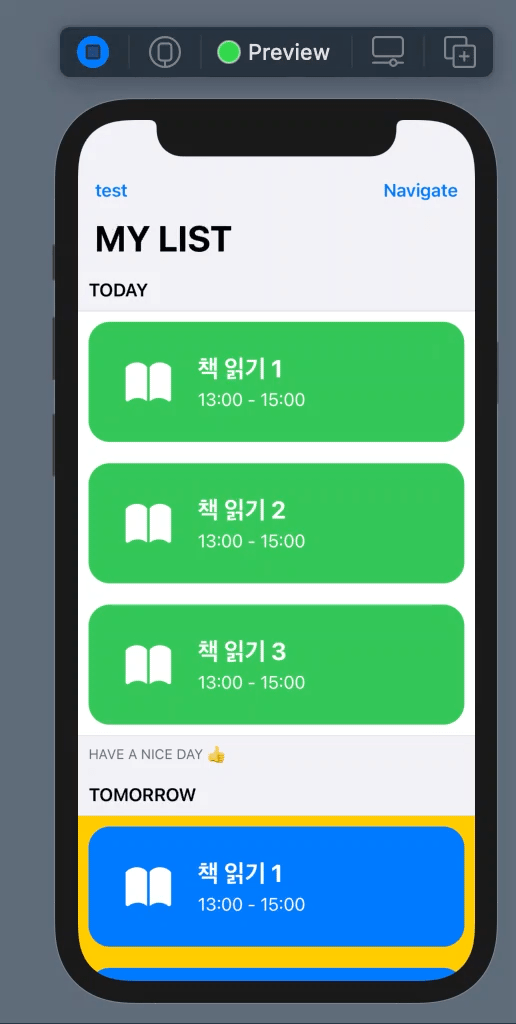

우측 상단에 navigationBarItems(NavigationLink) 놓기
import SwiftUI
struct MyNavigationView: View{
var body: some View{
NavigationView{
MyList()
// .navigationBarTitle("안녕하세요")
.navigationBarItems(leading: Button(action:{
print("클릭 됨")
}){
Text("test")
}, trailing: NavigationLink(
destination: Text("NextPage")){
Text("Navigate")
})
}
}
}leading 뒤에 콤마 찍고 trailing 설정하면 됨
NextPage로 넘어가면 좌측 상단에 MY LIST라 표시가 됨
❓참고할 점
기존에 만들어 둔 MyList navigationBarTitle을 MY LIST라 설정해서 그런지 navigationBarTitle("안녕하세요")가 먹히지 않음

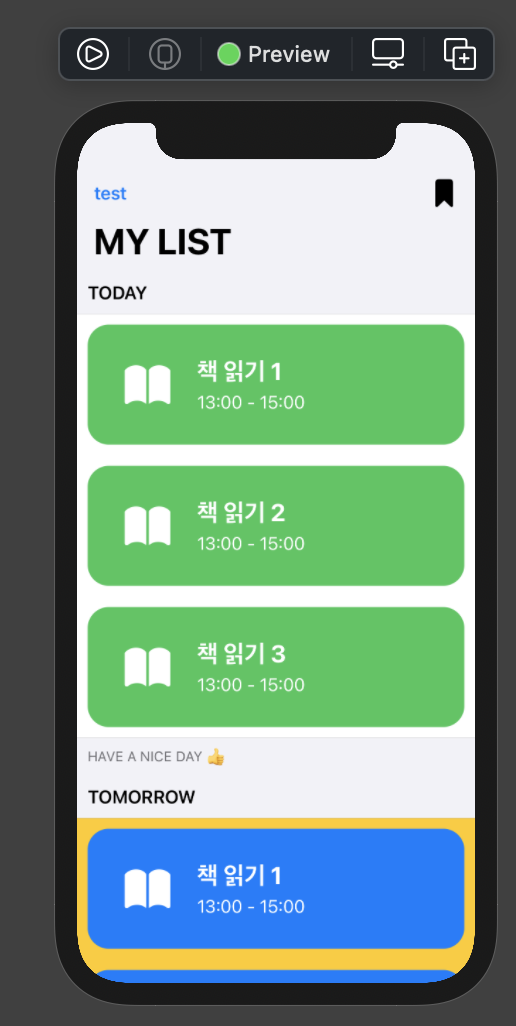

버튼을 꾸며주는 부분에는 sf Symbol 같이 이미지를 사용할 수 있음
import SwiftUI
struct MyNavigationView: View{
var body: some View{
NavigationView{
MyList()
// .navigationBarTitle("안녕하세요")
.navigationBarItems(leading: Button(action:{
print("클릭 됨")
}){
Text("test")
}, trailing: NavigationLink(
destination: Text("NextPage")){
Image(systemName: "bookmark.fill")
.font(.system(size: 25))
.foregroundColor(Color.black)
})
}
}
}
📌 응용하던 중 문제 발생
NavigationView를 만들 때는 잘 먹히던게
이게 ContentView랑 엮어지면서 리스트 상단이 내려가고 네비게이션 탭도 두개가 생겨버림 ㅠ
NavigationView로 ContentView를 시작하게 되었고
MyProfileView에서 또 NavigationView로 감싸주면 NavigationView가 중첩되어서 공간이 붕 뜨고 돌아가는 탭도 두 개가 뜨게 되는 것
그래서 한층으로 옮겨다니는 형태면 NavigationView로 감싸줄 필요가 없음
ContentView의 NavigationView로 MyProfileView로 넘어왔기 때문에 MyProfileView에서는 NavigationView로 감싸 줄 필요가 없음

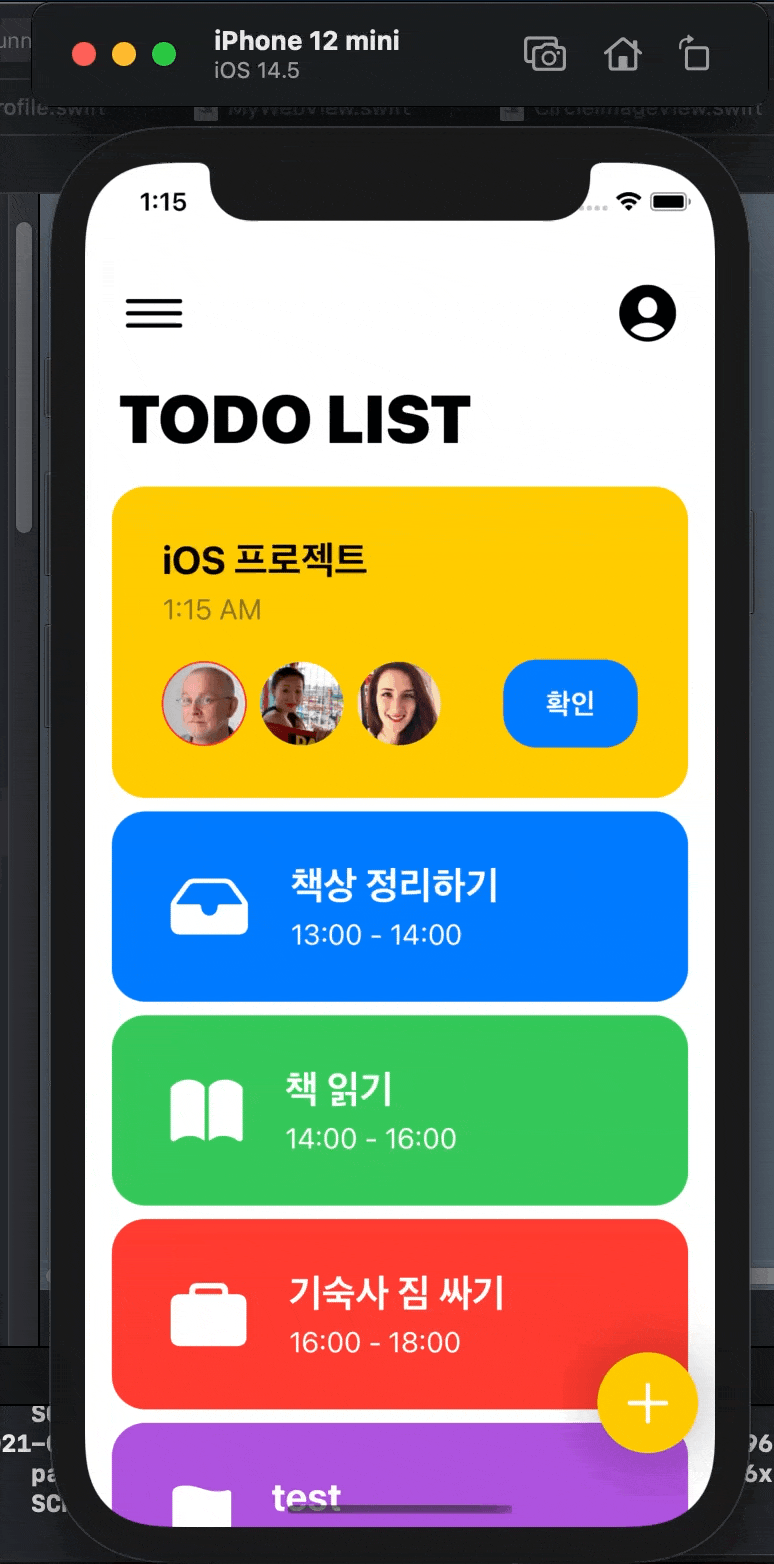

응용하기(여태까지 배운 것들 엮어보기) 최종본
import SwiftUI
struct ContentView: View {
@State //State는 값을 감지함
var isNavigationBarHidden : Bool = false
var body: some View {
NavigationView{
ZStack(alignment: .bottomTrailing){
VStack(alignment: .leading, spacing: 0){
HStack{
NavigationLink(destination: MyList()){
Image(systemName: "line.horizontal.3")
.font(.largeTitle)
.foregroundColor(.black)
}
Spacer()
NavigationLink(destination: MyProfile()){
Image(systemName: "person.crop.circle.fill")
.font(.largeTitle)
.foregroundColor(.black)
}
}.padding(.top, 20)
.padding(.horizontal, 20)
Text("TODO LIST")
.font(.system(size: 40))
.fontWeight(.black)
.padding(.horizontal, 20)
.padding(.top,20)
ScrollView{
VStack{
MyCard()
MyProject(icon: "tray.fill", title: "책상 정리하기", start: "13:00", end: "14:00", bgColor: Color.blue)
MyProject(icon: "book.fill", title: "책 읽기", start: "14:00", end: "16:00", bgColor: Color.green)
MyProject(icon: "case.fill", title: "기숙사 짐 싸기", start: "16:00", end: "18:00", bgColor: Color.red)
MyBasic()
}.padding()
}
}
Circle()
.foregroundColor(Color.yellow)
.frame(width:60, height: 60)
.overlay(Image(systemName: "plus")
.font(.system(size:30))
.foregroundColor(.white))
.padding(10)
.shadow(radius: 20)
}//ZStack
.navigationTitle("Main")
.navigationBarHidden(self.isNavigationBarHidden)
.onAppear{
self.isNavigationBarHidden = true
//렌더링되면서 self.isNavigationBarHidden이 true가 되면서 뷰를 다시 그림 - > 없어짐 근데 둘 다 없어짐
}
}//NavigationView
}
}import SwiftUI
struct HideRowSeparatorModifier: ViewModifier {
static let defaultListRowHeight: CGFloat = 44
var insets: EdgeInsets
var background: Color
init(insets: EdgeInsets, background: Color){
self.insets = insets
var alpha: CGFloat = 0
UIColor(background).getWhite(nil, alpha: &alpha)
assert(alpha == 1, "")
self.background = background
}
func body(content: Content) -> some View {
content
.padding(insets)
.frame(
minWidth: 0, maxWidth: .infinity, minHeight: Self.defaultListRowHeight, alignment: .leading
)
.listRowInsets(EdgeInsets())
.background(background)
}
}
extension EdgeInsets{
static let defaultListRowInsets = Self(top: 10, leading: 10, bottom: 10, trailing: 10)
}
extension View {
func hideRowSeparator(insets: EdgeInsets = .defaultListRowInsets, background: Color = .white)
-> some View {
modifier(HideRowSeparatorModifier(insets: insets, background: background))
}
}
struct MyList: View{
var body: some View{
List{
Section(
header:
Text("TODAY")
.font(.headline)
.foregroundColor(.black)
,footer:
Text("HAVE A NICE DAY 👍")
){
ForEach(1...3, id: \.self){
itemIndex in //Text("MY LIST \(itemIndex)")
MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)", start: "13:00", end: "15:00", bgColor: Color.green).hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10))
}
}
.listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))
Section(
header:
Text("TOMORROW")
.font(.headline)
.foregroundColor(.black)
,footer:
Text("GOOD DAY👍")
){
ForEach(1...20, id: \.self){
itemIndex in //Text("MY LIST \(itemIndex)")
MyProject(icon: "book.fill", title: "책 읽기 \(itemIndex)", start: "13:00", end: "15:00", bgColor: Color.blue).hideRowSeparator(insets: EdgeInsets(top: 10, leading: 10, bottom: 10, trailing: 10),background: Color.yellow)
}
}
.listRowInsets(EdgeInsets.init(top: 10, leading: 10, bottom: 10, trailing: 10))
}
.listStyle(GroupedListStyle())
.navigationBarTitle("MY LIST")
}
}import SwiftUI

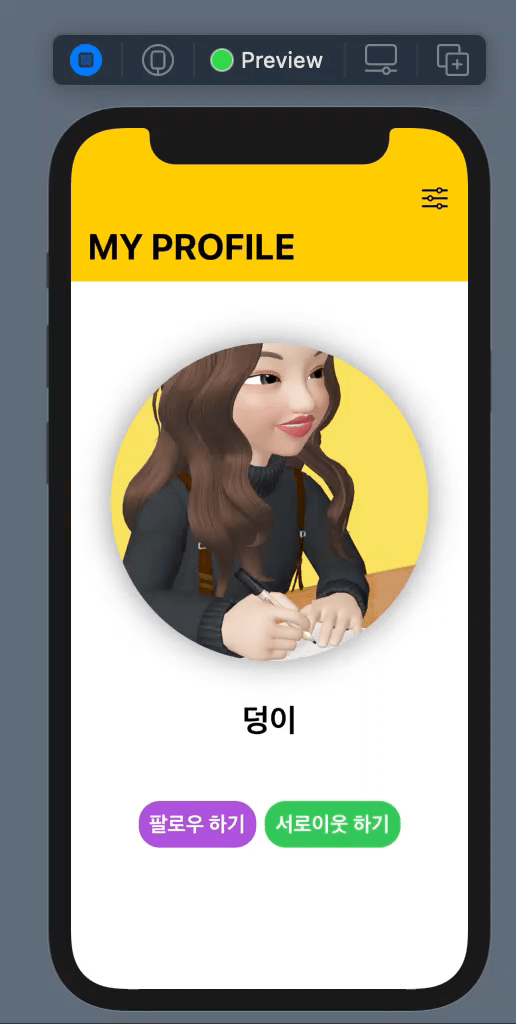

struct MyProfile: View {
var body: some View {
ScrollView{
VStack{
CircleImageView()
.padding(.vertical, 20)
.navigationBarTitle("MY PROFILE", displayMode: .automatic)
.navigationBarItems(trailing: NavigationLink(destination: MySetting()){
Image(systemName: "slider.horizontal.3")
.font(.system(size: 25))
.foregroundColor(.black)
})
Text("덩이")
.font(.system(size: 30))
.fontWeight(.bold)
.padding(.top, 30)
Text("막학년 코딩노예")
.font(.system(size:20))
.padding(.top, 20)
HStack{
NavigationLink(
destination: MyWebView(url: "https://www.instagram.com/__juzzg").edgesIgnoringSafeArea(.all)){
Text("팔로우 하기")
.font(.system(size: 20))
.fontWeight(.bold)
.foregroundColor(Color.white)
.padding(10)
.background(Color.purple)
.cornerRadius(20)
}
NavigationLink(
destination: MyWebView(url: "https:/blog.naver.com/hj__0403")
.edgesIgnoringSafeArea(.all)){
Text("서로이웃 하기")
.font(.system(size: 20))
.fontWeight(.bold)
.foregroundColor(Color.white)
.padding(10)
.background(Color.green)
.cornerRadius(20)
}
}//HStack
.padding(15) //버튼패딩
}
}
}
}import SwiftUI
import WebKit
struct MyWebView: UIViewRepresentable {
var url: String
//UI View 만들기
func makeUIView(context: Context) -> WKWebView {
//url unwrapping
guard let url = URL(string: self.url)
else{ //url이 없으면 기본 웹페이지 보여줌
return WKWebView()
}
//위에서 받은 url로 url 리퀘스트 인스턴스 생성
let urlRequest = URLRequest(url: url)
let wkWebview = WKWebView()
wkWebview.load(urlRequest)
return wkWebview
}
func updateUIView(_ uiView: WKWebView, context: UIViewRepresentableContext<MyWebView>)
{
}
}import SwiftUI
struct CircleImageView : View{
var body : some View{
Image("profile")
.resizable()
.scaledToFill()
.frame(width: 300, height: 300)
.clipShape(Circle())
.shadow(color: .gray, radius: 15)
.overlay(
Circle()
.foregroundColor(.yellow)
.opacity(0)
)
.edgesIgnoringSafeArea(.all)
}
}import SwiftUI
struct MySetting:View {
var body: some View{
Text("Setting Page")
}
}import SwiftUI
struct MyCard : View {
@State
var shouldShowAlert : Bool = false
let date = Date()
var body: some View{
VStack(alignment: .leading, spacing: 0){
Rectangle().frame(height:0)
Text("iOS 프로젝트")
.font(.system(size:23))
.fontWeight(.bold)
.padding(.bottom,5)
Text(date, style: .time)
.foregroundColor(.secondary)
Spacer().frame(height:20)
HStack{
Image("1")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
.overlay(
Circle()
.stroke(lineWidth: 1)
.foregroundColor(Color.red))
Image("2")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Image("3")
.resizable()
.frame(width: 50, height:50)
.clipShape(Circle())
Spacer()
Button(action:{
print("확인 되었습니다")
self.shouldShowAlert = true
}){
//버튼 생김새
Text("확인")
.fontWeight(.bold)
.foregroundColor(.white)
.padding()
.frame(width: 80)
.background(Color.blue)
.cornerRadius(20)
}.alert(isPresented: $shouldShowAlert){
Alert(title: Text("완료 하셨나요?"))
}
}
}
.padding(30)
.background(Color.yellow)
.cornerRadius(20)
}
}import SwiftUI
struct MyBasic: View{
var body: some View{
HStack(spacing: 20){
Image(systemName: "flag.fill")
.font(.system(size: 40))
.foregroundColor(.white)
VStack(alignment: .leading, spacing: 0){
Divider().opacity(0)
Text("test")
.fontWeight(.bold)
.font(.system(size: 23))
.foregroundColor(.white)
Spacer().frame(height:5)
Text("test")
.foregroundColor(.white)
}
}
.padding(30)
.background(Color.purple)
.cornerRadius(20)
}
}import SwiftUI
struct MyProject: View{
var icon : String
var title : String
var start: String
var end : String
var bgColor : Color
var body: some View{
HStack(spacing: 20){
Image(systemName: icon)
.font(.system(size: 40))
.foregroundColor(.white)
VStack(alignment: .leading, spacing: 0){
Divider().opacity(0)
// Rectangle.frame(height:0)
Text(title)
.fontWeight(.bold)
.font(.system(size: 23))
.foregroundColor(.white)
Spacer().frame(height:5)
Text("\(start) - \(end)")
.foregroundColor(.white)
}
}
.padding(30)
.background(bgColor)
.cornerRadius(20)
}
}
